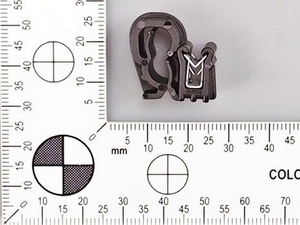

Cable clip for edge, T=1.0 - 3.0mm, nom⌀=5.8 - 6.8 mm
Art.-No. 151-04010 | EC1-3SPDHC6-7-PA66HSUV-BK |

Copied
EdgeClip for direct fixation up to two solar cables.
EdgeClip for direct fixation up to two solar cables.
EdgeClip Solar.
EdgeClip for direct fixation up to two solar cables.
EdgeClip for direct fixation up to two solar cables.
EdgeClip for direct fixation up to two solar cables.
EdgeClip for direct fixation up to two solar cables.
EdgeClip for direct fixation up to two solar cables.

    • for one or two solar cables
    • secure hold of the cables
    • simple change of cables in case of maintenance
    • for edges 1.0 - 3.0 mm
    Downloads
    Application Our EC1-3SPDHC6-7 will help you lay solar cables. You can easily attach this article to your solar modules in order to guide up to two cables into the holder by simply pressing them in.
    Cable ⌀ max 6.8mm
    Cable ⌀ min 5.8mm
    Colour Black (BK)
    Fixation Method EdgeClip, sideway
    Key product features for multiple routing, for direct fixation, for faster processing
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    PART DESCRIPTION EC1-3SPDHC6-7-PA66HSUV-BK
    Pack Content 100pcs.
    Product Family EdgeClip series for solar panels
    Product Group Fixing element for solar cables
    Type EC1-3SPDHC6-7
    UV-Stabilised Yes
    UV-Stabilised Reference Raw Material based
    Attach to ⌀ 5.8 - 6.8
    Bundle Diameter Nom. (ND) 5.8 - 6.8 mm
    Height (H) 20.9mm
    Length (L) 21.9mm
    Panel Thickness 1.0 - 3.0mm
    Width (W) 14.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    PFAS-free No - alternative under development
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    GTIN-13 / EAN 4031026729701
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.25m

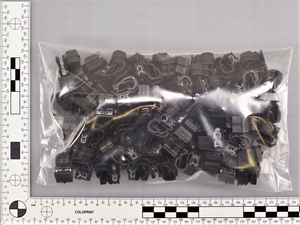

    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00165m³
    Packaging 1 - Weight (kg) 0.281029kg
    Packaging 1 - Width (m) 0.22m
    UNSPSC Key 31162305
