P-clamp closed, Dmax=6.5mm, ⌀4.2 mm, natural, 100pcs.


Art.-No. 211-00264

| H3P-PA66-NA

 |

Copied
P-Clamps H1P - H18P in different dimensions.
Plastic P-clamps cover a bundle diameter of approx. 3.2 up to 35.0 mm and are also available as an aluminium version.
P-Clamp H1P - H18P (side view)
HP plastic cable clamps.
HP plastic cable clamps.

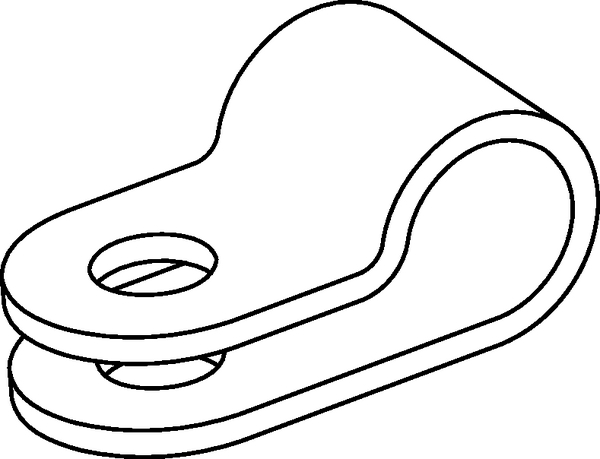

P-Clamp H1P - H18P (plan view)
13179584
P-Clamps manufactured in polyamide, aluminium or aluminium with a chloroprene insert.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Natural (NA)
    Fixation Method screw-hole
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION H3P-PA66-NA
    Pack Content 100pcs.
    Package Content packed in pack
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type H3P
    UV-Stabilised No
    Variant Closed
    Bundle ⌀ max. 6.5mm
    Fixing Hole Centres (F) 0.39"
    Fixing Hole Centres (F) 10.0mm
    Nominal ⌀ 0.25"
    Nominal ⌀ 6.5mm
    Radius (R) 1.0mm
    Wall (WT) 0.039"
    Wall (WT) 1.0mm
    Width (W) 10.0mm
    for Hole ⌀ (FH) 4.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant No
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026592121
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121702
