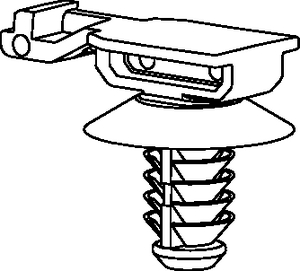

Cable clip with pipe/tube holder/for hole (round), T=4.5mm, ⌀7.0 mm, Dmax=12mm
Art.-No. 151-00852 | HC512FT7J-PA66HSUV-BK |

Copied
Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour Black (BK)
Description A new solution for fixing harnesses
Key product features lockable, rotatable, removable
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
PART DESCRIPTION HC512FT7J-PA66HSUV-BK
Pack Content 100pcs.
Package Content packed in bag
Product Family With Fir Tree
Product Group Fixing Elements for Tubes and Harnesses
Type HC512FT7J
UV-Stabilised Yes
Attach to ⌀ 12.0
Bundle ⌀ max. 12mm
Panel Thickness 4.5mm
Width (W) 12mm
for Hole ⌀ (FH) 7.0 mm
for Panel Thickness min - max 4.5 - 4.5 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
GTIN-13 / EAN 4944387961515
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.002106m³
Packaging 1 - Weight (kg) 0.335701kg
Packaging 1 - Width (m) 0.195m
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 2500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.043m³
Packaging 3 - Weight (kg) 8.7725kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 37500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002m³
Packaging 4 - Weight (kg) 152.588kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 31162305
