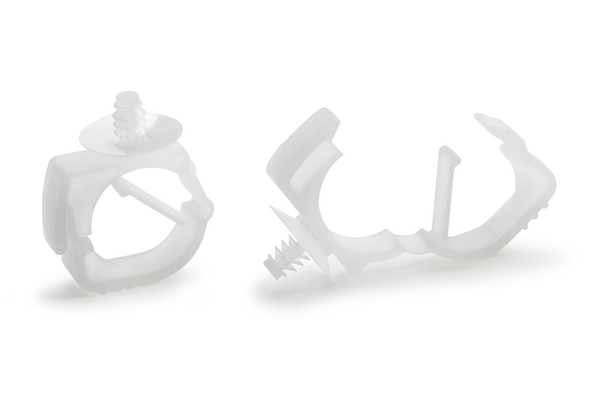

Cable clip, T=3.0mm, ⌀3.3 - 4.0 mm, Dmax=13mm

Art.-No. 151-03160

| HC513FT4J-PA66-NA

|

Harness Clip made from E/TFE (blue), PA66 heat stabilised and weatherresistant (natural) and PA66 (black) for round holes from 3.3 - 4.0 mm.

Harness Clip for round holes with Fir Tree.

Simply separate the cable wires and hear the audible click of the reopenable fastening clip.

Dome-shaped support makes it difficult for dust to enter after fixed to the panel.
The clip part can be opened and closed, that harness can be removed during maintenance.
The mount design uses HT’s unique fir tree shape, which can be used for wide range of plate thicknesses.

Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Downloads

More products in this product group:

Holder Clip

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Natural (NA)
Fixation Method	Fir Tree
Material	Polyamide 6.6 (PA66)
Mounting Screw Type	M4 Screw
PART DESCRIPTION	HC513FT4J-PA66-NA
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Fixing Elements for Tubes and Harnesses with Fir Tree
Product Group	Holder Clip
Type	HC513FT4J

Product Dimensions

Bundle ⌀ max.	13mm
Length (L)	38.2mm
Panel Thickness	3.0mm
Width (W)	7.0mm
for Hole ⌀ (FH)	3.3 - 4.0 mm
for Panel Thickness min - max	1 - 3 mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Logistics and Packaging


GTIN-13 / EAN	4944387121513
Packaging 1 - Qty	100
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.138001kg
Packaging 3 - Height (m)	0.345m
Packaging 3 - Length (m)	0.455m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0494m³
Packaging 3 - Width (m)	0.315m

More Information

UNSPSC Key

39121702
