31/10/2025

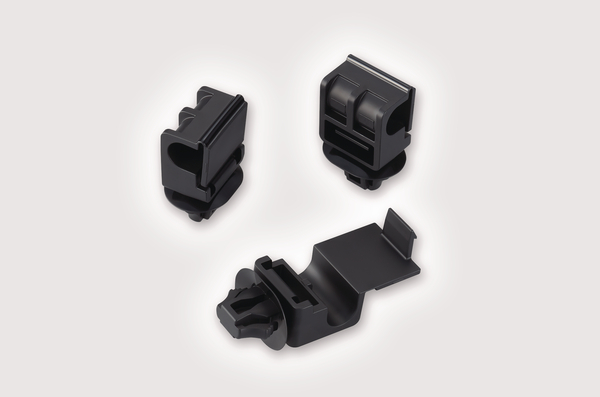

Cable clip, T=3.2mm, ⌀7.0 x 12.0 mm, Dmax=8mm
Art.-No. 151-03183 | HC8PM712V-PA66HSW-BK |

Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

More products in this product group:

Fixing Elements for Tubes and Harnesses >

Base Data

Application	This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour	Black (BK)
Description	A new solution for fixing harnesses
Material	Polyamide 6.6, heat and UV-resistant (PA66HSW)
PART DESCRIPTION	HC8PM712V-PA66HSW-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	HC8PM712V
Product Group	Fixing Elements for Tubes and Harnesses
Type	HC8PM712V

Product Dimensions

Bundle ⌀ max.	8mm
Length (L)	47mm
Panel Thickness max.	3.2mm
Width (W)	21mm
for Hole ⌀ (FH)	7.0 x 12.0 mm
for Panel Thickness min - max	1.2 - 3.2 mm

Downloads

RoHS datasheet

다운로드

Specifications

Flammability	UL 94 V2
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Logistics and Packaging

GTIN-13 / EAN

4944387121681

More Information

UNSPSC Key

31162305
