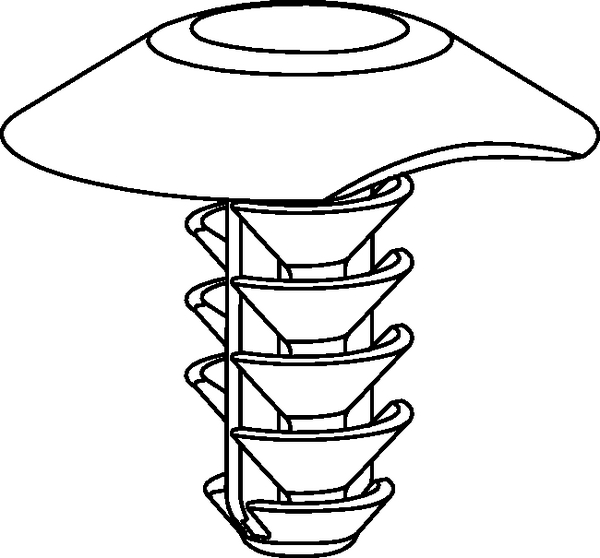

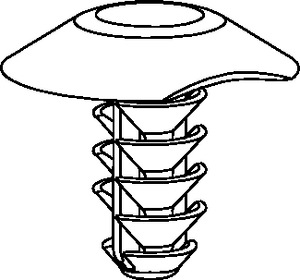

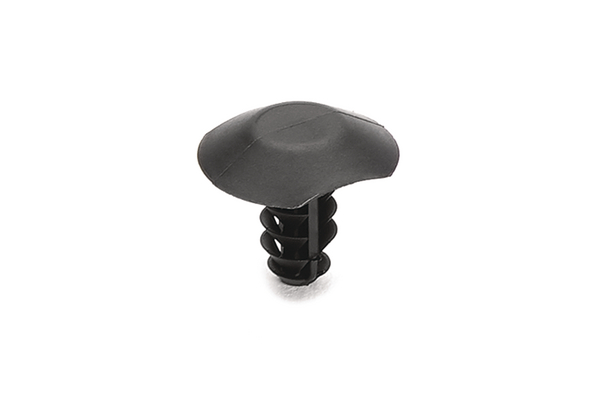

Blind plug, ØM6, black, 3000pcs.
Art.-No. 151-01071 | M6PUSHPIN-PA46-BK | 세부

Disc covers the hole and minimizes ingress of dust, dirt and water.

Easy assembly without the need of a tool
Disc of the part covers the hole and minimises ingress of dust, dirt and water
Standard geometry for example fir tree or arrowhead

More products in this product group:

Base Data

Application	Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.
Colour	Black (BK)
Material	Polyamide 4.6 (PA46)
Pack Content	3000pcs.
Package Content packed in	carton
PART DESCRIPTION	M6PUSHPIN-PA46-BK
Product Group	Blind Plugs

Product Dimensions

for Hole ∅ (FH)	M6
for Panel Thickness min - max	- 15
Height (H)	13.36mm
Length (L)	12.5mm
Width (W)	5.84mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
Operating Temperature	-40 °C to +130 °C
Specifications
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No

Logistics and Packaging


GTIN-13 / EAN	4031026500836
Packaging 3 - Height (m)	0.1651m
Packaging 3 - Length (m)	0.26034999999999997m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0091m³
Packaging 3 - Weight (kg)	1.32kg
Packaging 3 - Width (m)	0.2111375m

More Information

UNSPSC Key

39121702
