EdgeGuard
Art.-No. 251-06006 | TH-024-PA6-NA 세부

  • Very flexible
  • Easy to apply

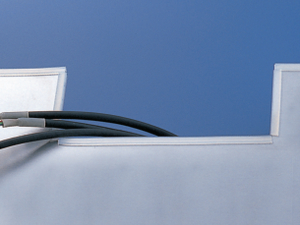

  • Protects cables from chafing on bulkheads

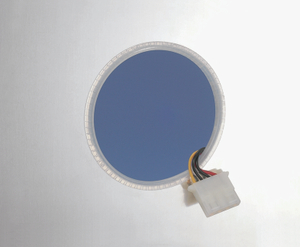

Application EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
Colour Natural (NA)
Material Polyamide 6 (PA6)
Pack Content 100m
Package Content packed in box
PART DESCRIPTION TH-024-PA6-NA
Product Family EdgeGuard
Product Group Edge protection
for Panel Thickness min - max - 2.3
Height (H) 5.2mm
Length (L) 100m
Wall (WT) 1.2mm
Width (W) 4.4mm
Width (W2) 2.3mm
Flammability UL 94 HB
Operating Temperature -40 °C to +85 °C
Specifications
GTIN-13 / EAN 4944387509205
