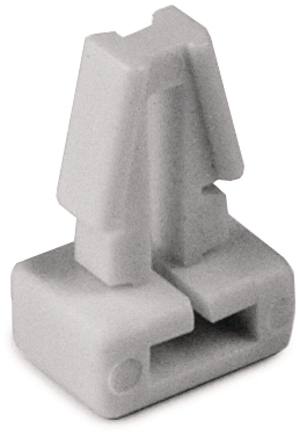

Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ⌀6.35 mm, white, 50pcs.

Art.-No. 151-40109

| TM1SF-PA66-WH

|

TM1SF for secure fixing of cables into pre-drilled or pre-punched holes.

Ideal mount for space-saving applications with restricted access
Arrowhead for very secure fixing

Downloads

More products in this product group:

Cable Fixing Cradle

Base Data

Application	Offering simple and easy methods of securing cables or pipes, these fixing accessories have many applications within a wide range of industries.
Colour	White (WH)
Fixation Method	with Arrowhead / Push Mount (Mounts)
For Ties	T18 - T50
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	TM1SF-PA66-WH
Pack Content	50pcs.
Package Content packed in	bag
Product Family	TM1SF for cable ties width up to 5.0 mm
Product Group	Cable Fixing Cradle
Type	TM1SF

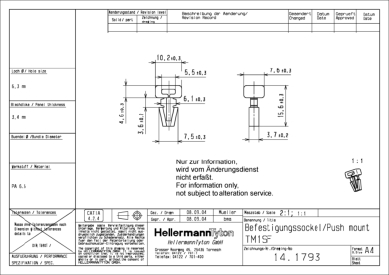

Product Dimensions


Height (H)	15.6mm
Height (H2)	4.60mm
Length (L)	10.2mm
Max. Tie Width (G)	5.0mm
Panel Thickness	0.134"
Panel Thickness	3.4mm
Panel Thickness max. (imperial)	0.13"
Panel Thickness min. (imperial)	0.134"
Strap Width max. (G)	0.2"
Width (W)	7.6mm
for Hole ⌀ (FH)	6.35 mm
for Panel Thickness min - max	3.4 - 3.4 mm

Downloads

Specifications

CE Certification	Yes
CSA Certified	No
Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	Yes
UL Recognized (US)	Yes
UL-File Number	E64139

Logistics and Packaging

GTIN-13 / EAN	4031026794853
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20479m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Width (m)	0.314325m

More Information

UNSPSC Key

39121717

Accessories

MK21 110-21016
Manual tensioning tool for cable ties, simple version

MK10-SB 110-10001
Manual tensioning tool for cable ties with low profile head

EVO9i 110-88001
Manual tensioning tool plastic housing

MK9P 110-09100
Pneumatic tensioning tool plastic housing

MK9P w/ Upper air 110-09110
Pneumatic tensioning tool plastic housing

ProCut 9 no battery 104-10010
Battery-powered tool for tensioning and cutting cable ties

Similar products

TM1SF-PA66-WH 151-00328
Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ⌀6.3 mm, white, 1000pcs.

TM1SF-PA66-BK 151-00774

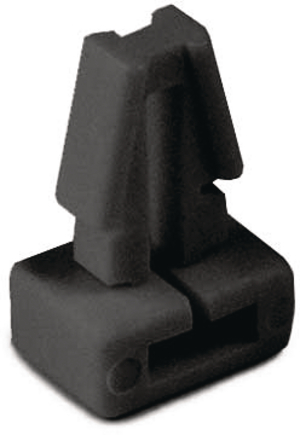

Cable tie mount for hole (round), Wmax=5.0mm, T=3.4mm, ⌀6.35 mm, black, 50pcs.
