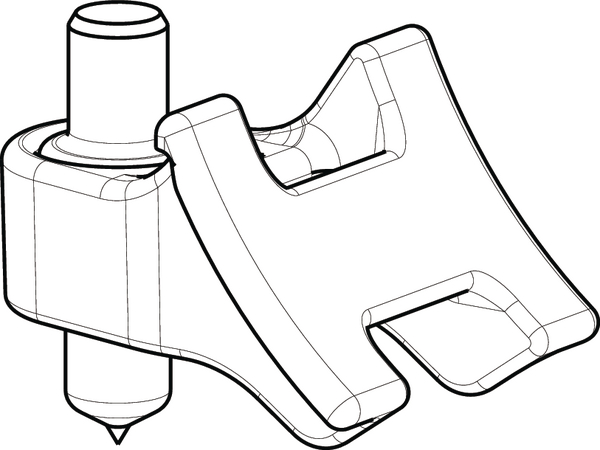

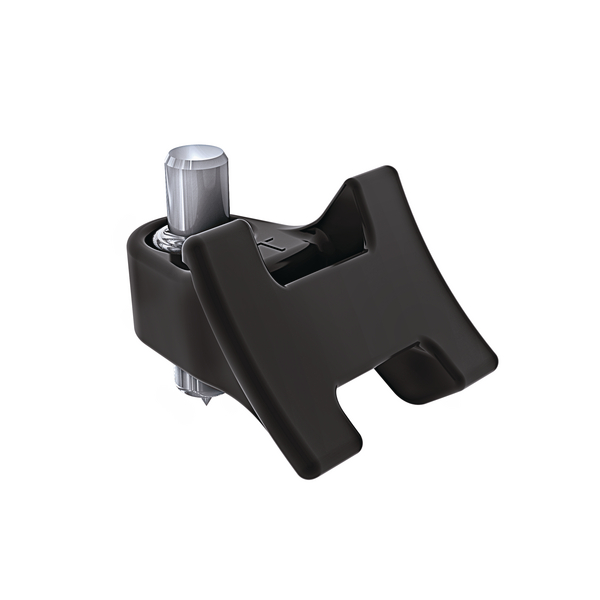

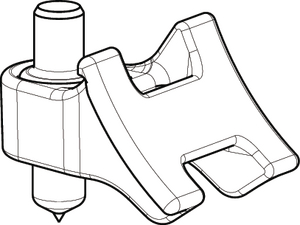

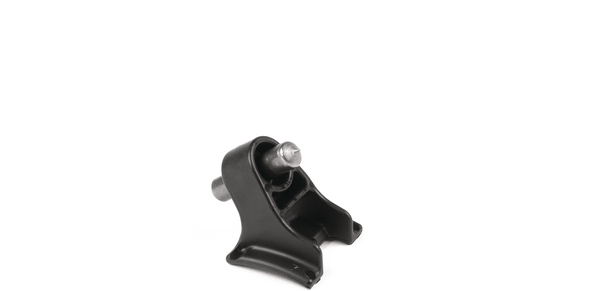

Cable tie mount for stud, Wmax=13.0mm, ⌀6.0 mm, black, 500pcs.

Art.-No. 151-00146

| WSM6-PA66HIRHSW-BK

|

When used in conjunction with a cable tie, the Weld Stud Mount significantly reduces time and labor, and eliminates the need for multiple sized P-clamps, nuts, and bolts.

Downloads e-Learning

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Material	Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
PART DESCRIPTION	WSM6-PA66HIRHSW-BK
Pack Content	500pcs.
Package Content packed in	pack
Type	WSM6
UV-Stabilised	Yes

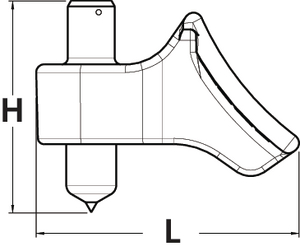

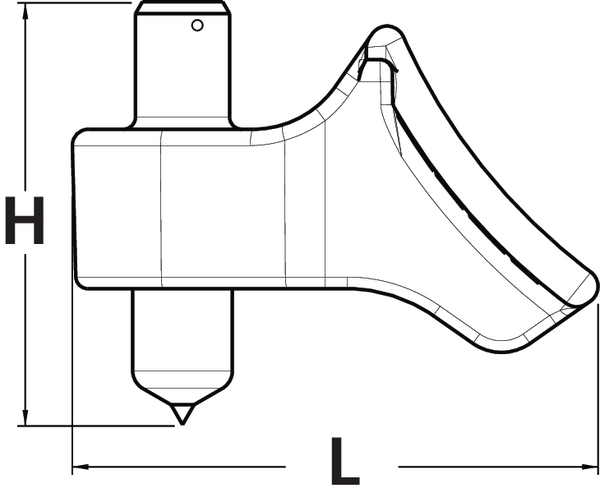

Product Dimensions

Height (H)	27.0mm
Length (L)	33.5mm
Max. Tie Width (G)	13.0mm
Strap Width max. (G)	0.51"
Stud ⌀	0.24"
Stud ⌀	6.0 mm
Width (W)	27.2mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


GTIN-13 / EAN	4031026701950
Packaging 1 - Height (m)	0.12m
Packaging 1 - Length (m)	0.3m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.009m³
Packaging 1 - Weight (kg)	5.0kg
Packaging 1 - Width (m)	0.25m
Packaging 2 - Height (m)	0.216m
Packaging 2 - Length (m)	0.3048m
Packaging 2 - Qty	500
Packaging 2 - Type	carton
Packaging 2 - Volume (m³)	0.0176m³
Packaging 2 - Weight (kg)	5.018kg
Packaging 2 - Width (m)	0.267m
Packaging 3 - Height (m)	0.168m
Packaging 3 - Length (m)	0.260349999999999m
Packaging 3 - Qty	500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0092m³
Packaging 3 - Weight (kg)	6.03kg
Packaging 3 - Width (m)	0.209549999999999m
Packaging 4 - Qty	66000

More Information

UNSPSC Key

39121717
