Helashrink 300 Series
Art.-No. 403-04019 | 304-2-G-PO-X-BK |  세부

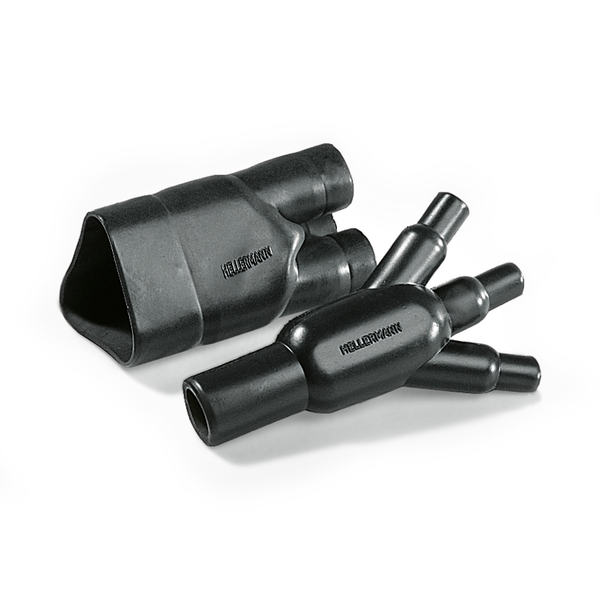

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Content 1pc.
    Package Content packed in bag
    PART DESCRIPTION 304-2-G-PO-X-BK
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Variant For 3-core cables
    HW ± 30 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 43mm
    S ± 10 % 50mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 18mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660452048
    UNSPSC Key 39121721
