Helashrink 400 Series
Art.-No. 404-11001 | 411-1-B7-PO-X-BK |  세부

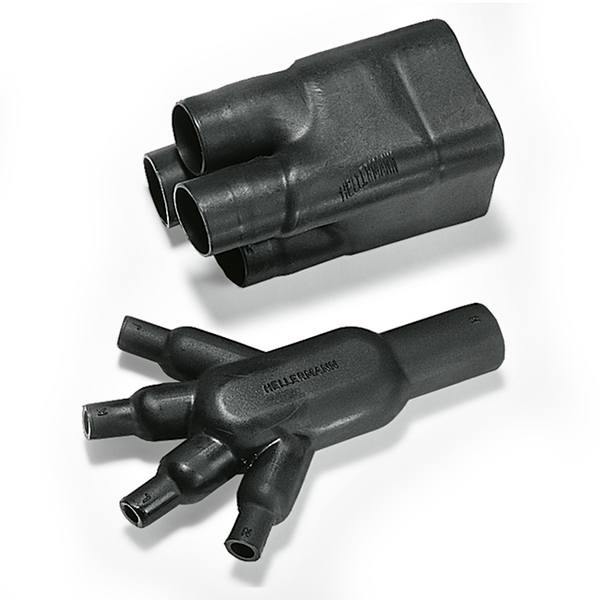

403-1 supplied / fully recovered.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    Pack Content 1pc.
    Package Content packed in bag
    PART DESCRIPTION 411-1-B7-PO-X-BK
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Variant For 4-core cables
    Flexibility semi rigid
    HW ± 30 % 2.0mm
    JW ± 30 % 1mm
    P ± 10 % 71mm
    P ±10%=overall length 71mm
    R nom. 36mm
    R ± 10 % 36mm
    S nom. 32mm
    S ± 10 % 32mm
    T ± 10 % 36mm
    ∅H max. b 10mm
    ∅H min. a 19mm
    ∅J max. b 5.5mm
    ∅J min. a 9.5mm
    ∅J/K/L/N max. b 5.5mm
    ∅J/K/L/N min. a 9.5mm
    ∅K max. b 5.5mm
    ∅K min. a 9.5mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-00-939-8490
    Operating Temperature -50 °C to +80 °C
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660461668
    UNSPSC Key 39121721
