Solar label, pre-printed, red, 50.8x101.6mm, 50pcs.
Art.-No. 596-00240 | ACRATING-840/281-RD |

More products in this product group:

Application	For use on AC Disconnect. Voltage data can be printed using a thermal transfer printer.
Colour	Red (RD)
Colour of Print	White (WH)
Key product features	pre-printed, chemical resistance, outdoor use, UV resistant
Material	Type 840/281, Polyester, UV-stabilised, clear polyester laminate (840/281)
PART DESCRIPTION	ACRATING-840/281-RD
Pack Content	50pcs.
Package Content packed in	pack
Print Method	thermal transfer print
Product Group	Printable Solar Installation Labels

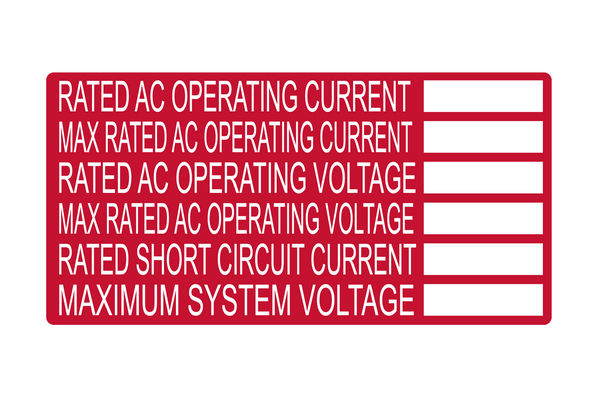

Technical Description	4" X 2" White text on red background that reads as: "RATED AC OPERATING CURRENT; MAX RATED AC OPERATING CURRENT; RATED AC OPERATING VOLTAGE; MAX RATED AC OPERATING VOLTAGE; RATED SHORT CIRCUIT CURRENT; MAXIMUM SYSTEM VOLTAGE." 50 per roll. Label is also printable using a thermal transfer printer to add the variable voltage information on demand.
Type	ACRATING
UV-Stabilised	Yes

Adhesive	Acrylic
Adhesive Operating Temperature	-40 °C to +150 °C
CE Certification	No
CSA Certified	Yes
Curing Temperature	+10 °C
Halogen-free	Yes
Operating Temperature	-40 °C to +150 °C
Pre-Printed	Yes
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Specifications
Specifications	CSA 66956, IFC 2012, NEC2014, NEC2017, NEC2020, NEC2023, UL 969
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	Yes
UL-File Number	MH14382, MH16736
