Solar label, pre-printed, red, 50.8x92.25mm, 50pcs.
Art.-No. 596-00326
| BIPOLARPV-V-RD
|
Copied
| Application | This label would be used on a bipolar array (usually larger solar farms) All DC equipment would require this label. |
| Colour | Red (RD) |
| Colour of Print | White (WH) |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| Material | Vinyl (V) |
| PART DESCRIPTION | BIPOLARPV-V-RD |
| Pack Content | 50pcs. |
| Package Content packed in | pack |
| Product Group | Pre-Printed Solar Installation Labels |

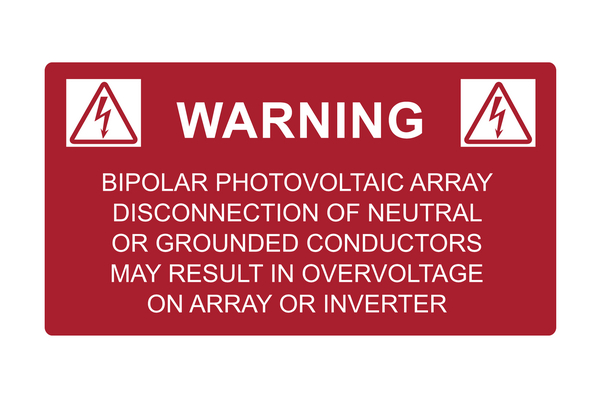

| Technical Description | 3.75" X 2" White text on red background that reads as: "WARNING - BIPOLAR PHOTOVOLTAIC ARRAY. DISCONNECTION OF NEUTRAL OR GROUNDED CONDUCTORS MAY RESULT IN OVERVOLTAGE ON ARRAY OR INVERTER." - 50 per roll. |
| Type | BIPOLARPV |
| UV-Stabilised | No |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +79 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +79 °C |
| Pre-Printed | Yes |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | IFC 2012, NEC2011, UL 969 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | MH11410 |
