Solar label, pre-printed "DO NOT DISCONNECT UNDER LOAD", red, 25.40x165.1mm, 50pcs.
Art.-No. 596-00244
| DNDCUL-505/281-RD
|
Copied
| Application | For use on main service disconnect or inverter |
| Colour | Red (RD) |
| Colour of Print | White (WH) |
| Key product features | pre-printed, chemical resistance, outdoor use, UV resistant |
| Marking Text | DO NOT DISCONNECT UNDER LOAD |
| Material | Type 505/281, UV-stabilised, reflective vinyl with clear polyester laminate (505/281) |
| PART DESCRIPTION | DNDCUL-505/281-RD |
| Pack Content | 50pcs. |
| Package Content packed in | pack |
| Product Group | Pre-Printed reflective solar installation labels |

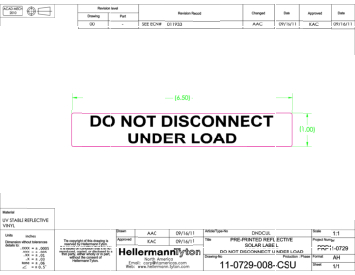

| Technical Description | 6.5" X 1" White text on red background that reads as: "DO NOT DISCONNECT UNDER LOAD" in 3/8" tall characters. 50 per pkg. |
| Type | DNDCUL |
| UV-Stabilised | Yes |
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +150 °C |
| CE Certification | No |
| CSA Certified | No |
| Curing Temperature | +10 °C |
| Halogen-free | No |
| Operating Temperature | -40 °C to +79 °C |
| Pre-Printed | Yes |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | IFC 2012, NEC2011, NEC2017, UL 969 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | MH11410, MH14382, MH16736 |
