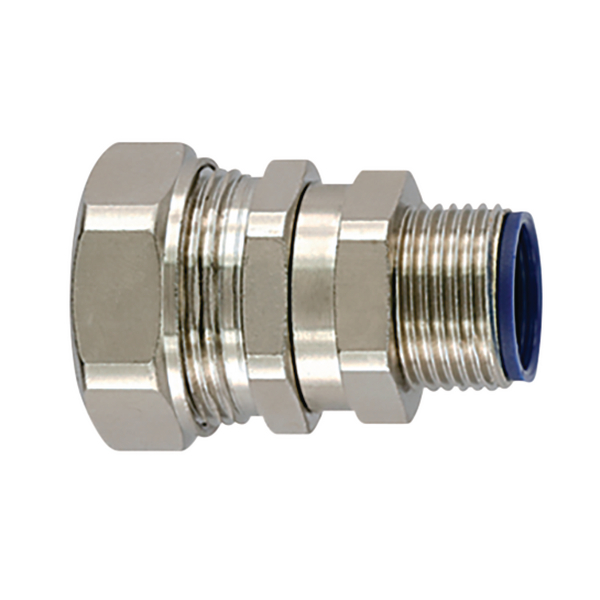

LTS100-SMC-M32-NPB/PA6-ML : LTS100-SMC-M32
Art.-No. 166-90414 | LTS100-SMC-M32-NPB/PA6-ML | 세부

Base Data

Colour	Metal (ML)
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Pack Content	2pcs.
Package Content packed in	pack
PART DESCRIPTION	LTS100-SMC-M32-NPB/PA6-ML
Thread type	metric
Variant	Straight

Product Dimensions

Bore Diameter (Imperial)	0.97"
Bore Diameter (metric)	24.6mm
Height (H)	42.0mm
Length (L)	56.9mm
Nominal ∅	32.0mm
Nominal ∅	1"
Thread Length (TL)	13mm
Thread Length (TL) (Imperial)	0.51"
Thread Size	M32
Wrenching Flat Size (Imperial)	2.24"
Wrenching Flat Size (Metric)	56.9mm

Downloads

Technical drawing 16-1971-001-CSU

다운로드

Specifications

CSA Certified	No
Halogen-free	Yes
IP-Rating	IP68
Operating Temperature	-50 °C to +135 °C
Specifications
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4031026520889

More Information

UNSPSC Key

39131707
