26/07/2025

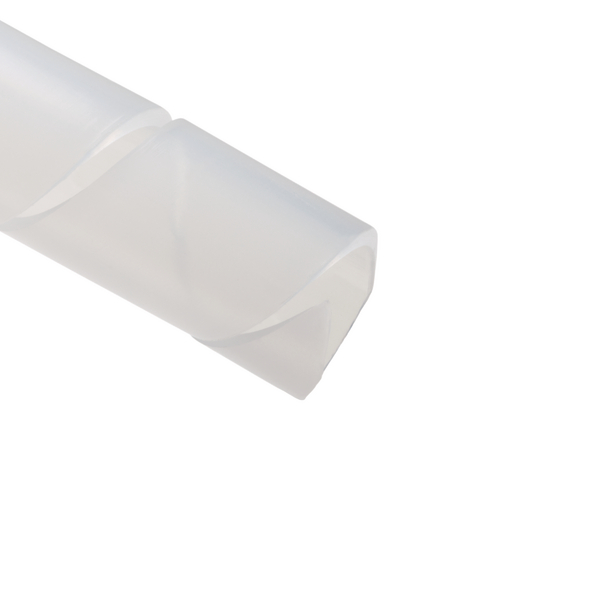

Spiral wrap, nom⌀12.7mm, ⌀9.52-102.0mm, -60 °C to +88 °C, natural, 30.48m
Art.-No. 161-05055 | 3NFP-PE-NA |

Copied
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Sheathing allows flexible routing and lead-out of cables.

    • For organising and protecting wires, cables and tubes
    • Wide range of diameters and colours
    • Capable of retro-fitting

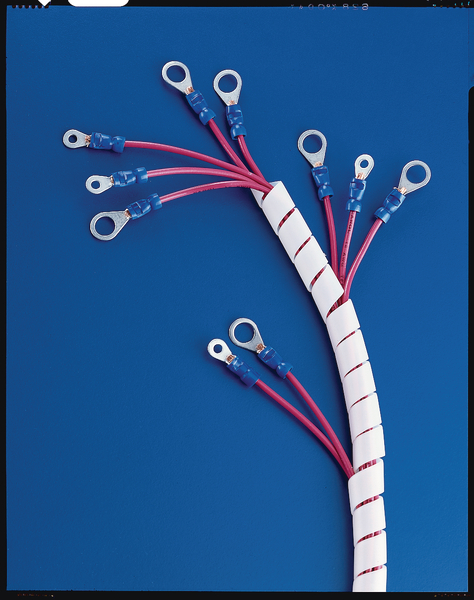

    • Wires can branch out at any point, in any direction
    Downloads
    Colour Natural (NA)
    Material Polyethylene (PE)
    PART DESCRIPTION 3NFP-PE-NA
    Pack Content 30.48m
    Package Content packed in pack
    Product Group Spiralwrap
    Type 3NFP
    UV-Stabilised No
    Variant Spiral Binding
    ⌀ D 0.5"
    Bundle ⌀ max. 102.0mm
    Bundle ⌀ min. 9.52mm

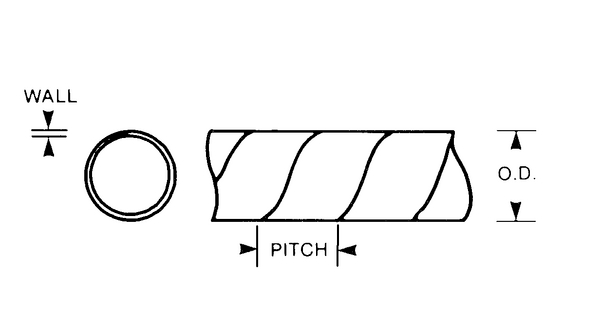

    Diameter (D) 12.7mm
    Length (L) 30.48m
    Nominal ⌀ 0.5"
    Nominal ⌀ 12.7mm
    Pitch (P) 0.56"
    Pitch (P) 14.3mm
    Wall (WT) 1.57mm
    Wall (WT) 0.062"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -60 °C to +88 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E147924
    GTIN-13 / EAN 4031026718415
    Packaging 1 - Type roll
    Packaging 3 - Weight (kg) 18.78kg
    Reel Length 100.0ft
    Reel Length 30.48m
    UNSPSC Key 39131604
