26/10/2025

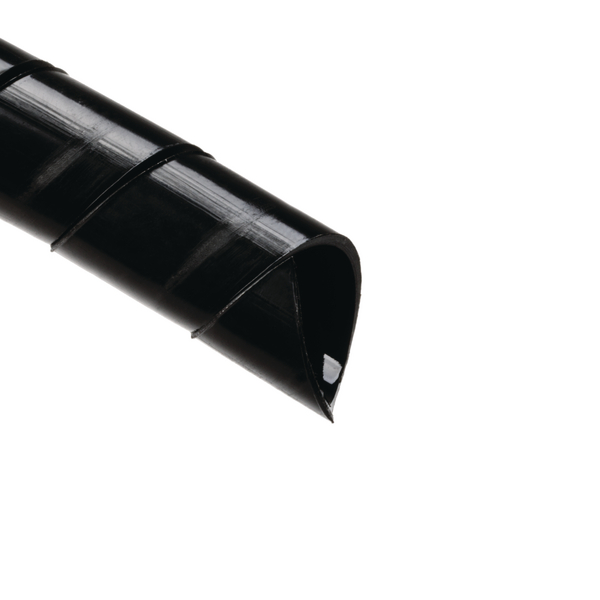

Spiral wrap, nom⌀19.05mm, ⌀12.7-127.0mm, -40 °C to +121 °C, black, 30.48m
Art.-No. 161-05071 | 4N-PA6-BK |

Copied
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Sheathing allows flexible routing and lead-out of cables.

    • Used for organising and protecting wires, cables and tubes
    • Available in a wide range of diameters and colours
    • Can be fitted onto cables, wires or tubes in situ
    • Wires can branch out at any point and in any direction
    Downloads
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION 4N-PA6-BK
    Pack Content 30.48m
    Package Content packed in pack
    Product Group Cable Organizer
    Type 4N
    UV-Stabilised No
    Variant Spiral Binding
    ⌀ D 0.75"
    Bundle ⌀ max. 127.0mm
    Bundle ⌀ min. 12.7mm
    Diameter (D) 19.05mm
    Length (L) 30.48m
    Nominal ⌀ 0.75"
    Nominal ⌀ 19.05mm
    Pitch (P) 0.75"
    Pitch (P) 19.05mm
    Wall (WT) 0.81mm
    Wall (WT) 0.032"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +121 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E147924
    GTIN-13 / EAN 4031026718590
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Reel Length 100.0ft
    Reel Length 30.48m
    UNSPSC Key 39131604
