Fittings for FlexiGuard spiral-reinforced PVC Conduits : FG17-M20

Straight fitting Ø13 M20-thread, Article number: 167-00531

Features

  • One piece, easy fit
  • Swivel thread
  • Vibration and tension resistant
  • Large bore size
  • Inner ferrule protects cables
  • Good resistance to chemicals

Certifications & Approvals

Application

Straight swivel external thread.
Fulfils IP54 with FlexiGuard FG conduits.

FG straight fitting with swivel thread, IP54 is suitable for following markets and industries

  • Electrical Installation Electrical Installation
  • Electronics Industry Electronics Industry
  • Telecommunication Telecommunication
Colour Grey (GY)
Pack Content 10pcs.
Package Quantity per bag
PART DESCRIPTION FG17-M20-PP-GY
Product Family FG straight fitting with swivel thread, IP54
Product Group Fittings for FlexiGuard spiral-reinforced PVC Conduits
Type of connection Thread
Variant Straight

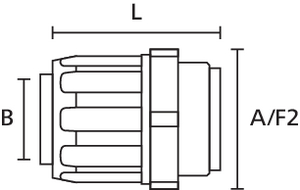

A/F Thread (A/F2) 24mm
Diameter (D) 26.4mm
Length (L) 45.5mm
Lowest inner diameter 11mm
Min. Bore Size (B) 11.1mm
Nominal ∅ 17mm
Nut Size (NS) 20.0
Outside Ø (OD) 26.4mm
Thread Length (TL) 9mm
Thread Size M20
∅ (D2) 11.1mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP54
Material Polypropylene (PP)
Material PP
Material of fitting ETIM Polypropylene (PP)
Operating Temperature - °C -35 °C to +80 °C
Specifications
EAN / GTIN 4031026277462
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00248
Packaging 1 - Weight (kg) 0.072kg
Packaging 1 - Width (m) 0.11m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 1500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.04
Packaging 3 - Weight (kg) 11.3kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 292.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.072kg
