Fittings for spiral-reinforced PVC conduits : PSR12-S-M16

Straight fitting grey with External Thread ø12mm M16, Article number: 166-40701

PSR-S Straight.

Features

  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
  • Fits both PSR and PSRSC conduits

Certifications & Approvals

Application

Straight PA66 fitting, fixed external thread.
Fulfils IP65 with PSR conduits.
Fulfils IP66 and IP67 with PSRSC conduits.

PSR-S Straight fitting is suitable for following markets and industries

  • Electronics Industry Electronics Industry
  • Industrial Automation Industrial Automation
Colour Grey (GY)
Pack Content 10pcs.
Package Quantity per bag
PART DESCRIPTION PSR12-S-M16-PA66-GY
Product Family PSR-S Straight fitting
Product Group Fittings for spiral-reinforced PVC conduits
Type of connection Snap-connection
Variant Straight

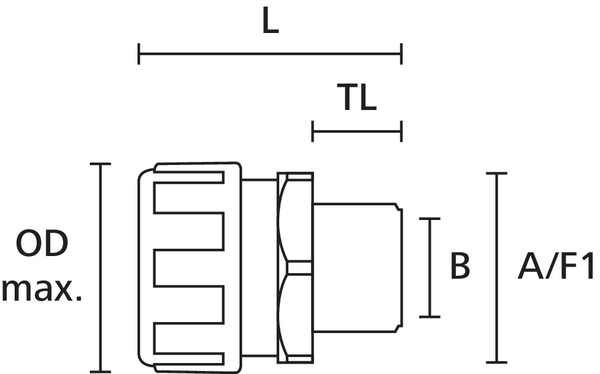

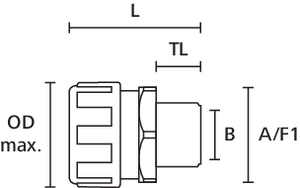

Height (H) 24mm
Length (L) 38mm
Lowest inner diameter 8mm
Min. Bore Size (B) 9.0mm
Nominal ∅ 12mm
Nominal ∅ 1/2"
Outside ∅ max (OD max.) 24mm
Thread Length (TL) 11mm
Thread Size M16
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP65 with PSR conduits, IP66 with PSRSC conduits, IP67 with PSRSC conduits
Material Polyamide 6.6 (PA66)
Material PA66
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications ANSI/UL 1695
UL-File Number E325250
EAN / GTIN 4031026410678
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00111
Packaging 1 - Weight (kg) 0.1kg
Packaging 1 - Width (m) 0.13m
Weight 0.1kg
