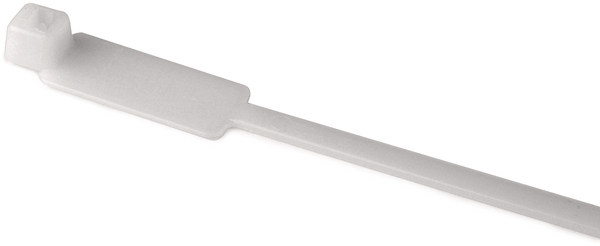

IT Ties
Art.-No. 111-00125 | IT50R-PA66-NA 세부

  • Identification ties made of Polyamide 6.6
  • For simple identification and securing of cable bundles in one step
  • Printable labels are available for a professional finish
  • Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Application One of the major benefits is the ability to both secure and identify cable bundles at different times.
Application Tool ProCut 9 no battery, MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT
Colour Natural (NA)
Fixation Method None
Identification Plate Position attached to bundle
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION IT50R-PA66-NA
Product Family IT Ties
Product Group Identification ties and plates for marking cable bundles
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
With label space Yes
Bundle Diameter max (metric) 44.50mm
Bundle ∅ min. 9.50mm
Height (H) 12.90mm
Length (L) 203.0mm
Min.Tensile Strength 225N
Outside ∅ max (OD max.) 44.50mm
Outside ∅ min. (OD min.) 9.50mm
Print Method manual marking
Width (W) 28.00mm
Width (W2) 4.60mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E64963
Recommended Labels TAG23-10TD1
UNSPSC Key 39121703
