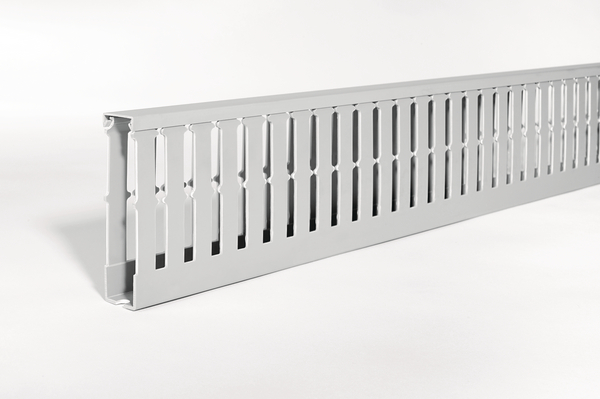

Rigid PVC wiring ducts : HTWD-PW-25X100

Wiring duct 25x100 mm, 2000 mm, PVC, grey, Article number: 181-10328

Features

  • Wide slots suitable for large-diameter wires
  • Wide fingers provide additional wire support
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Raised mounting points for easily, quickly and securely fastening wire retainers and other accessories prior to cabling
  • Wire retainers and accessories leave no protruding parts below surface of duct
  • Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
  • Additional retainer nub on fingers on ducts height 80 and above to prevent cables from slipping
  • Base perforation according to DIN EN 50085

Certifications & Approvals

Application

HelaDuct HTWD-PW wiring ducts are used to route and protect wires in control panels and switching systems.

HelaDuct HTWD-PW for large-diameter wires is suitable for following markets and industries

  • Electrical Installation Electrical Installation
  • Panel Building Panel Building
Application Tool 4FTOOL, HTWD-T1
Colour Grey (GY)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting
Pack Content 16m
Package Quantity per metre
PART DESCRIPTION HTWD-PW-25X100-PVC-GY
Product Family HelaDuct HTWD-PW for large-diameter wires
Product Group Rigid PVC wiring ducts
Type of side wall Slotted
Height (H) 100mm
Length (L) 2m
Width (W) 25mm
Width (W2) 8mm
Width (W3) 12mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride (PVC)
Material PVC
Operating Temperature - °C -5 °C to +65 °C
Self extinguishing (Yes/No) ETIM Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
EAN / GTIN 4031026567198
Packaging 3 - Height (m) 0.127m
Packaging 3 - Length (m) 2.03m
Packaging 3 - Qty 16
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0407
Packaging 3 - Weight (kg) 9.908kg
Packaging 3 - Width (m) 0.158m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 480
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 318.24kg
Packaging 4 - Width (m) 0.8m
Weight 0.588kg
