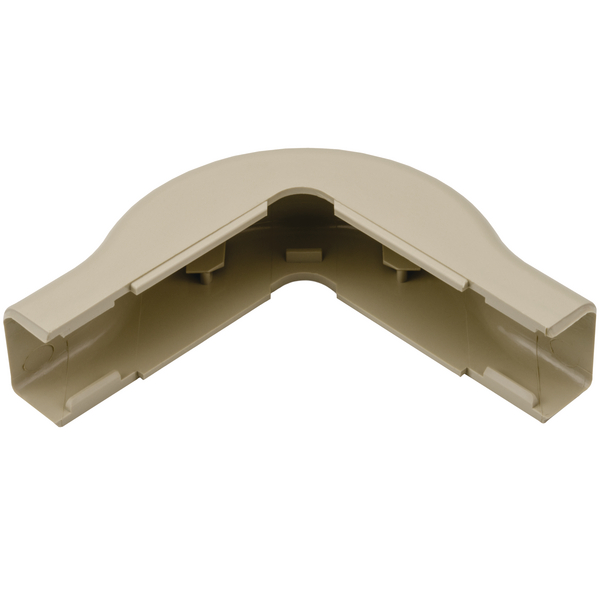

Accessory, Raceway, beige, 10 (TSR1-29-1)

Art.-No. 250-12908

| TSR1-29-1-PVC-BGE

|

PVC construction is lightweight, durable and more affordable than metallic raceway systems.

Ideal for power or data installation
Indicated to equip accessories of all wiring ducts sizes
Easy fitting with HellermannTyton faceplates
The power outlets meets the Brazilian standard of plugs and outlets

Downloads

More products in this product group:

Acessory of wiring duct raceway system in self-extinguishing ABS

Base Data

Application	Fitting frames for HellermannTyton's sockets, switches and exclusive accessories. They are used to equip accessories of all lines and sizes of wiring duct raceways.
Colour	Ivory (IV)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	TSR1-29-1-PVC-BGE
Pack Content	10
Package Content packed in	pack
Product Family	Faceplates, power outlets and switches
Product Group	Acessory of wiring duct raceway system in self-extinguishing ABS
Type	TSR1-29-1
UV-Stabilised	No

Product Dimensions

Height (H)	23.16mm
Length (L)	77.47mm
Wall (WT)	1.40mm
Wall (WT)	0.055"
Width (W)	77.47mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V0
Halogen-free	No
Operating Temperature	+50 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


GTIN-13 / EAN	4031026723518
Packaging 1 - Qty	10
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Width (m)	0.3175m

More Information

UNSPSC Key

39131711
