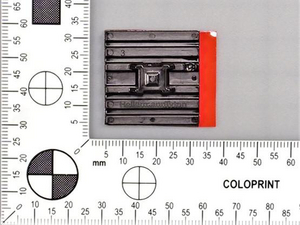

Cable Tie Mounts with high performance adhesive : FMB4APT-I

Flexible Fixing Part with Special Adhesive 28x28 black, Article number: 151-01527

Features

  • Flexible Mount for round and angled surfaces
  • FMB mounts with homogeneous system of acrylic adhesive
  • Allows greater design freedom and offers uniform stress distribution along with weight reduction
  • Adhesive with high cohesive strength combined with good weathering resistance
  • Innovative fixing solution for high and low energy surfaces
  • Protection foil with finger lift for easy peel off
  • 4-way entry for cable tie for quicker and more flexible installation
  • FlexTack Cable tie mounts are also suitable for high energy surfaces like metal or glass.

Certifications & Approvals

Application

FlexTack mounts offering an innovative fixing solution especially for concave or convex low energy surfaces like PP, PE or if drilling a hole is not possible. Suitable for a wide range of in- and outdoor applications on varnished, plastic or metal surfaces in many areas e. g. electrical cabinet, railway, aerospace, automotive and agriculture machinery.

FlexTack-Series FMB for round and angled surfaces is suitable for following markets and industries

Colour Black (BK)
Fixation Method Self-Adhesive

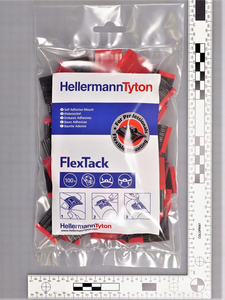

Pack Content 100pcs.
Package Quantity per bag
PART DESCRIPTION FMB4APT-I-PA66HS-BK
Product Family FlexTack-Series FMB for round and angled surfaces
Product Group Cable Tie Mounts with high performance adhesive
Height (H) 6.3mm
Length (L) 28.0mm
Max. Tie Width (G) 5.4mm
Strap Width max. (G) 0.213"
Width (W) 28.0mm
Adhesive Acrylate with base of acrylic foam
Adhesive Operating Temperature -35 °C to +120 °C
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Material PA66HS
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026543703
Packaging 1 - Height (m) 0.12m
Packaging 1 - Length (m) 0.155m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00502m³
Packaging 1 - Weight (kg) 0.17964kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048m³
Packaging 3 - Weight (kg) 9.632kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186m³
Packaging 4 - Weight (kg) 213.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.396lbs
Weight 0.1702kg
