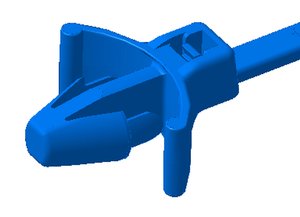

Fixing tie for hole (round), inside serrated, Ø1.6-22.0mm, natural, 1000pcs.
Art.-No. 126-00078 | T18RWPM-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
Package size

Request your individual offer now

Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Content 1000pcs.
Package Content packed in bag
PART DESCRIPTION T18RWPM-PA66-NA
Product Family for round holes
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 13.2mm
for Hole ∅ (FH) 4.8 - 5.6 mm
for Panel Thickness min - max 1.5 - 3.2 mm
for Panel Thickness min - max 0.1 - 0.1 "
Height (H) 5.8mm
Length (L) 113.0mm
Min.Tensile Strength 80N
Panel Thickness 0.06 " – 0.13"
Panel Thickness max. 1.5 – 3.2mm
Panel Thickness max. (imperial) 0.13"
Panel Thickness min. (imperial) 0.059"
Thickness (T) 1.1mm
Width (W) 2.5mm
Width (W2) 6.4mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 62275, csa-C22.2 no. 62275
UL OCD link Link
UL-File Number E85319
GTIN-13 / EAN 4031026512839
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0025
Packaging 1 - Weight (kg) 0.472001kg
Packaging 1 - Width (m) 0.145m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 16000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 8.172kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 288000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 168.096kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
