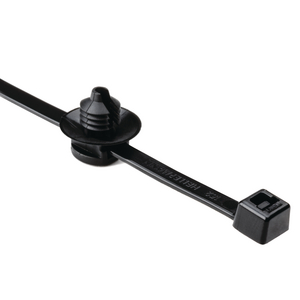

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes : T30RFT6LG

2-Piece Fixing Tie with Fir Tree and Disc 150x3.5 black, Article number: 150-31090

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Fixing Hole Shape Circular
Identification Plate Position none
Pack Content 500pcs.
Package Quantity per bag
PART DESCRIPTION T30RFT6LG-PA66HS/PA66HIRHS-BK
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 30.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
Disc ∅ 0.63"
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Height (H) 1.2mm
Height (H2) 11.1mm
Length (L) 148.0mm
Length (L2) 11.6mm
Length (L3) 17.5mm
Min.Tensile Strength 135N
Panel Thickness 0.03 – 0.24"
Panel Thickness max. 0.75 – 6.0mm
Panel Thickness max. (imperial) 0.236"
Panel Thickness min. (imperial) 0.03"
Thickness (T) 1.1mm
Width (W) 3.6mm
Width (W2) 9.0mm
Width (W2) 0.4"
Width (W3) 0.19"
Width (W3) 5.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material PA66HS, PA66HIRHS
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026120294
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0072
Packaging 1 - Weight (kg) 0.592001kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 4000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 5.486008kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 130.72kg
Packaging 4 - Width (m) 0.8m
Weight 0.592kg
UNSPSC Key 39121703
