Fixing tie for screw fixation, inside serrated, Ø1.5-50mm, transparent, 100pcs.
Art.-No. 113-00052 | T50MR-PA11-CL |  Details

Screw mount style creates low insertion and high extraction force.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Translucent (TT)
    Fixation Method Fixing hole
    Identification Plate Position none
    Material Polyamide 11 (PA11)
    Mounting Screw Type M5 Screw
    Pack Content 100pcs.
    Package Content packed in bag
    PART DESCRIPTION T50MR-PA11-CL
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Inside Serrated

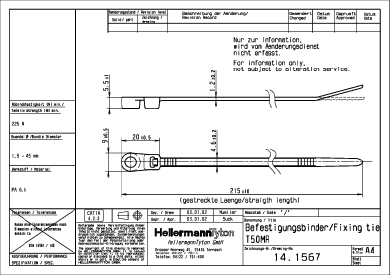

    Bundle Diameter max (metric) 50mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5.5mm
    Cable Tie Head Length (metric) 20.5mm
    Cable Tie Head Width (metric) 8.5mm
    for Hole ∅ (FH) 5.2 mm
    Height (H) 5.7mm
    Length (L) 216mm
    Min.Tensile Strength 200N
    Thickness (T) 1.3mm
    Width (W) 4.7mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    Specifications
    UNSPSC Key 39121703
