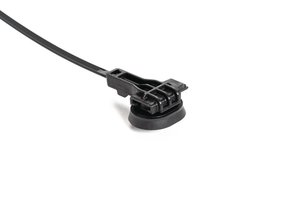

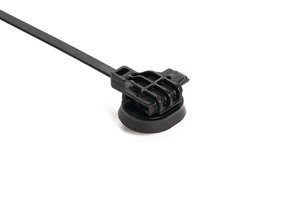

Fixing tie for hole (oval), outside serrated, ⌀1.6-30.0mm, black, 500pcs.
Art.-No. 126-00186
| T60SOSSFT65x130-E-MS-MD-PA66HS-BK
|
Copied
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts the tie for pressures from various directions
- Cable tie head always situated in defined position
- Cellular rubber seal minimises access of dust and dirt
- SFT versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Application | The parts are mainly used in the automotive industry, e.g. for door harnesses. |
| Colour | Black (BK) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Key product features | sealed |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 300N |
| PART DESCRIPTION | T60SOSSFT65x130-E-MS-MD-PA66HS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | for oval holes, sealed |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T60SOSSFT65x130-E-MS-MD |
| UV-Stabilised | No |
| Bundle ⌀ max. | 30.0mm |
| Bundle ⌀ min. | 1.6mm |
| Disc ⌀ | 0.63" |
| Disc ⌀ | 16.0 x 22.0mm |
| Fixing Hole Shape | Oval |
| Length (L) | 158.0mm |
| Panel Thickness | 0.02 - 0.08" |
| Panel Thickness | 0.6 - 2.0mm |
| Panel Thickness max. (imperial) | 0.08" |
| Panel Thickness min. (imperial) | 0.02" |
| Thickness (T) | 1.35mm |
| Width (W) | 5.5mm |
| for Hole ⌀ (FH) | 6.5 x 13.0 mm |
| for Panel Thickness min - max | 0.6 - 2 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
|
|
|
| GTIN-13 / EAN | 4031026464657 |
| Packaging 1 - Height (m) | 0.145m |
| Packaging 1 - Length (m) | 0.305m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.012161875m³ |
| Packaging 1 - Weight (kg) | 1.113kg |
| Packaging 1 - Width (m) | 0.275m |
| Packaging 3 - Height (m) | 0.345m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0498m³ |
| Packaging 3 - Weight (kg) | 5.07kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.258m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.208m³ |
| Packaging 4 - Weight (kg) | 112.26kg |
| Packaging 4 - Width (m) | 0.8m |
