24/09/2025

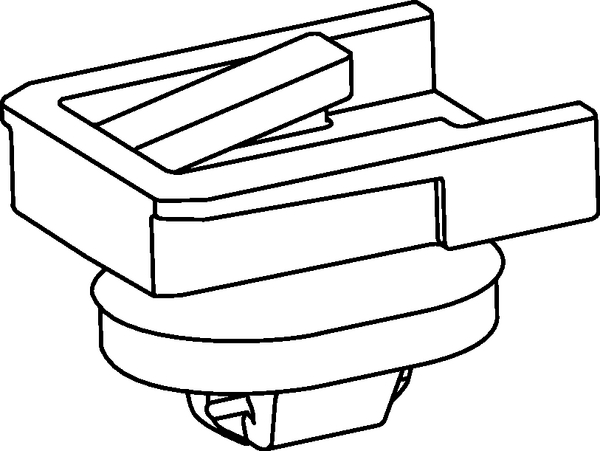

Connector clip, black, 1000pcs.
Art.-No. 151-02859 | CC5SFT65x130-MD-PA66HIRHS-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC5SFT65x130-MD-PA66HIRHS-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Type CC5SFT65x130-MD
    Height (H) 20.6mm
    Length (L) 25.2mm
    Panel Thickness max. 0.6-1.5mm
    Width (W) 19.5mm
    for Hole ⌀ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.6 - 1.5 mm
    Operating Temperature -40 °C to +105 °C
    GTIN-13 / EAN 4031026620329
    UNSPSC Key 31162305
