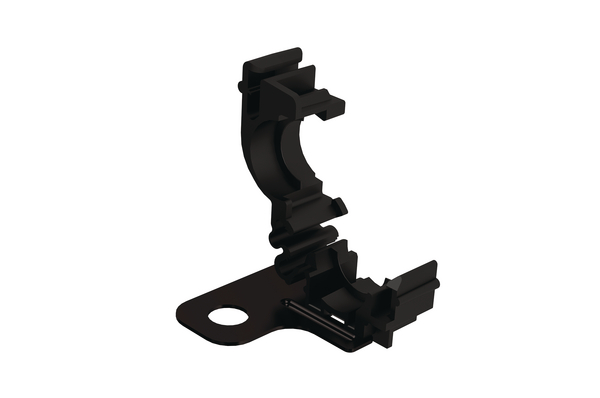

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 350pcs.
Art.-No. 133-03391 | CDC13B45OS21.3M8-PA66-BK |  Details

Internal rib stabilizes tubing to prevent movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M8 Screw
    Pack Content 350pcs.
    Package Content packed in carton
    PART DESCRIPTION CDC13B45OS21.3M8-PA66-BK
    Attach to Ø 13mm
    Bundle Diameter max (metric) 13.0mm
    Diameter (D) 14.0mm
    for Hole ∅ (FH) 8.8 mm
    Height (H) 65.6mm
    Length (L) 62.1mm
    Offset Length 38.2mm
    Stud ∅ M8
    Stud ∅ M8"
    Width (W) 23mm
    ∅ (D2) 17.6mm
    ∅ D 0.55"
    ∅ D2 0.69"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026594705
    Packaging 3 - Type box
    UNSPSC Key 39121702
