CDC13S60.5M10-PA66-BK
Art.-No. 133-04362 | CDC13S60.5M10-PA66-BK |

Copied

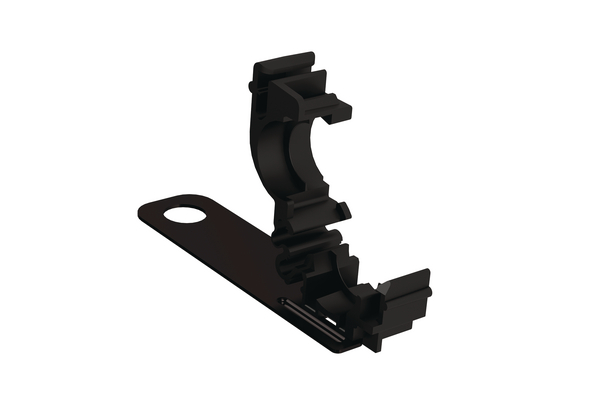

Can be easily assembled to convoluted tubing and reliably remain in position.

    Stock item
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M10 Screw
    PART DESCRIPTION CDC13S60.5M10-PA66-BK
    Pack Content 800pcs.
    Package Content packed in carton
    Type CDC13S60.5M10
    UV-Stabilised No
    ⌀ (D2) 17.6mm
    ⌀ D 0.55"
    ⌀ D2 0.69"
    Attach to ⌀ 13
    Bundle ⌀ max. 13.0mm
    Diameter (D) 14.0mm
    Height (H) 52.8mm
    Length (L) 85.7mm
    Offset Length 60.5mm
    Stud ⌀ M10
    Width (W) 23mm
    for Hole ⌀ (FH) 10.6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UNSPSC Key 31162305
