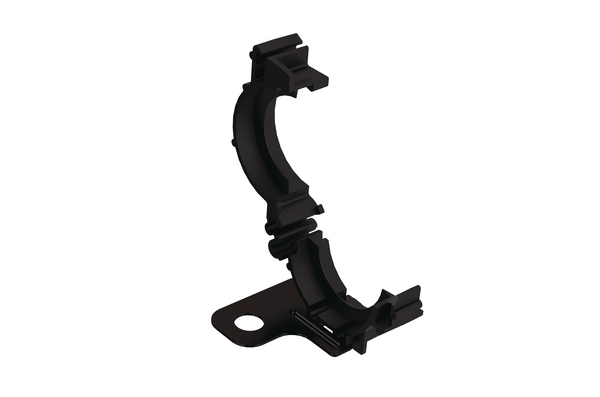

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 500pcs.
Art.-No. 151-02614 | CDC25OSR16.85M8-PA66HIRHS-BK |  Details

Internal rib protects tubing from movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    Pack Content 500pcs.
    Package Content packed in carton
    PART DESCRIPTION CDC25OSR16.85M8-PA66HIRHS-BK
    Attach to Ø 25mm
    Bundle Diameter max (metric) 25.0mm
    Diameter (D) 27.0mm
    for Hole ∅ (FH) 8.8 mm
    Height (H) 79.6mm
    Length (L) 72.1mm
    Offset Length 16.8mm
    Stud ∅ M8
    Stud ∅ M8"
    Width (W) 42mm
    ∅ (D2) 35.4mm
    ∅ D 1.06"
    ∅ D2 1.39"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    UNSPSC Key 39121702
