27/04/2024

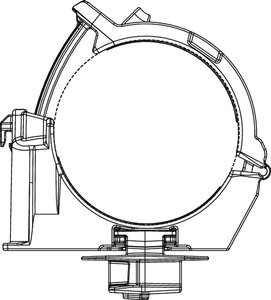

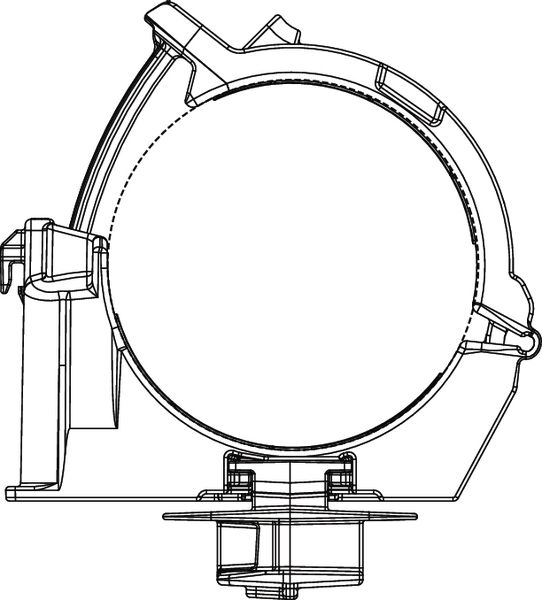

Cable clip, Dmin=36.0mm, Dmax=51.0mm, black, 200pcs.
Art.-No. 156-03004 | IRCDSTRUT-PA66HIRHSUV-BK |  Details

Clamp and mount combination means no extra hardware is needed.

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method 1-5/8 " strut attachment
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Maximum Static Load (lb/ft) 70lbs
    Pack Content 200pcs.
    Package Content packed in carton
    PART DESCRIPTION IRCDSTRUT-PA66HIRHSUV-BK
    Product Family screwable, Inline Ratchet Clamps
    Product Group Heavy duty cable clamps
    Variant Load Rating: 17 lbs, Safety Factor: 3 Pull Force Rating: 50 lbs
    Bundle Diameter max (metric) 51.0mm
    Bundle ∅ min. 36.0mm
    Height (H) 52.4mm

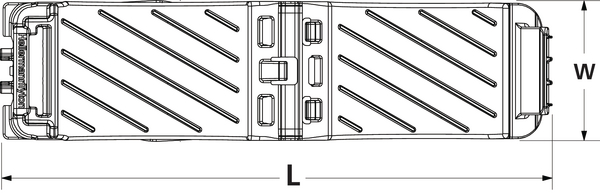

    Length (L) 140.9mm
    Load max. 311N
    Width (W) 34.81mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    Specifications
    Specifications UL2239 Conduit & Cable Hanger
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E523406
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026643663
    Packaging 3 - Height (m) 0.219m
    Packaging 3 - Length (m) 0.398m
    Packaging 3 - Qty 200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0528m³
    Packaging 3 - Weight (kg) 6.8kg
    Packaging 3 - Width (m) 0.606m
    UNSPSC Key 39121702
