23/05/2025

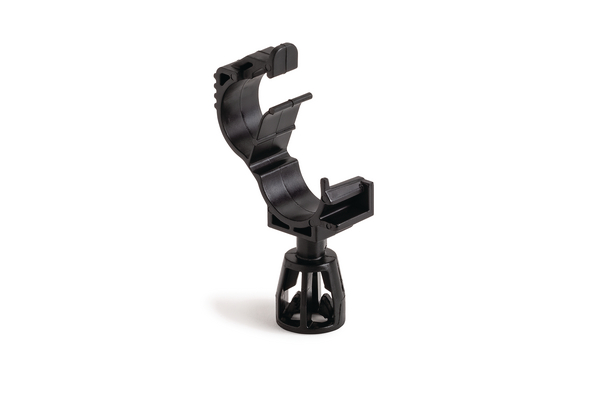

Cable clip for stud, ⌀5.0 mm/6.0 mm, Dmin=10.0mm, Dmax=15.0mm, nom⌀=12.0 mm, ⌀M5/M6
Art.-No. 156-02899 | SMFLOC10-14-PA66HIRHSUV-BK |

Copied

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SMFLOC10-14-PA66HIRHSUV-BK
    Pack Content 2000pcs.
    Package Content packed in carton
    Type SMFLOC10-14
    Bundle ⌀ max. 15.0mm
    Bundle ⌀ min. 10.0mm
    Bundle Diameter Nom. (ND) 12.0 mm
    Depth (D) 15.0mm
    Height (H) 44.0mm
    Height (H2) 33.9mm
    Length (L) 27.6mm
    Length (L2) 0mm
    Nominal ⌀ 12.0mm
    Stud ⌀ M5, M6
    for Hole ⌀ (FH) 5.0 mm, 6.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026635965
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 9.35kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Qty 48000
    UNSPSC Key 39121717
