29/03/2024

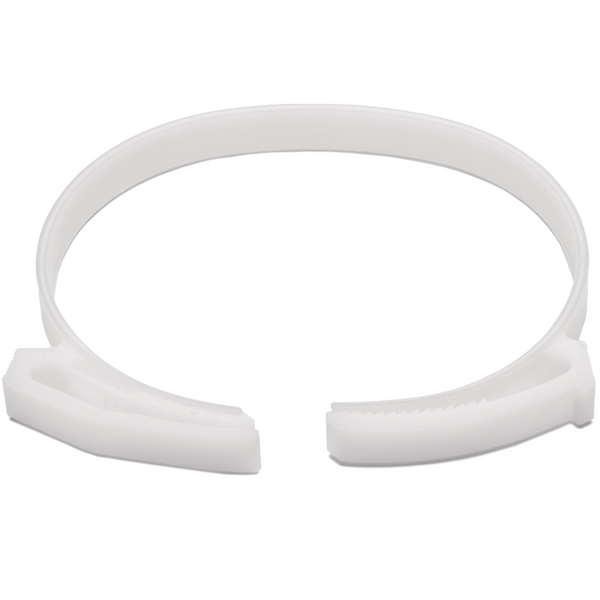

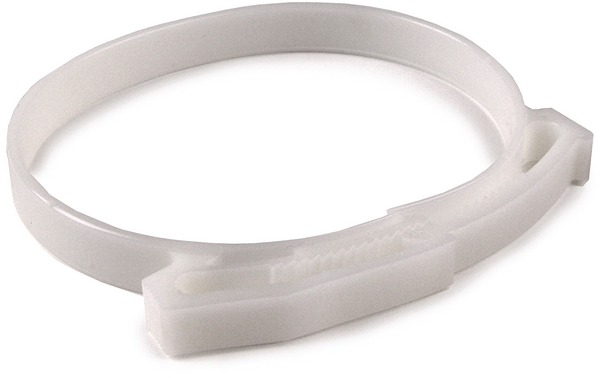

Plastic hose clamp, Ø66.9-79.9mm, white, 100pcs.
Art.-No. 190-00212 | SNP70-POM-WH Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more
Package size

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Colour White (WH)
Fixation Method Plug-in mounting
Material Polyacetal (POM)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION SNP70-POM-WH
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Variant Closed
Bundle Diameter max (metric) 79.9mm
Bundle ∅ min. 66.9mm
Wall (WT) 2mm
Wall (WT) .077"
Width (W) max. 76.28mm
Width (W) max. 3.003"
Width (W) min. 46.08mm
Width (W) min. 1.814"
Width (W2) 0.374"
Width (W2) 9.50mm
∅ D max. 78.74mm
∅ D max. 3.1"
∅ D min. 2.624"
∅ D min. 66.65mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +90 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026419091
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121702
