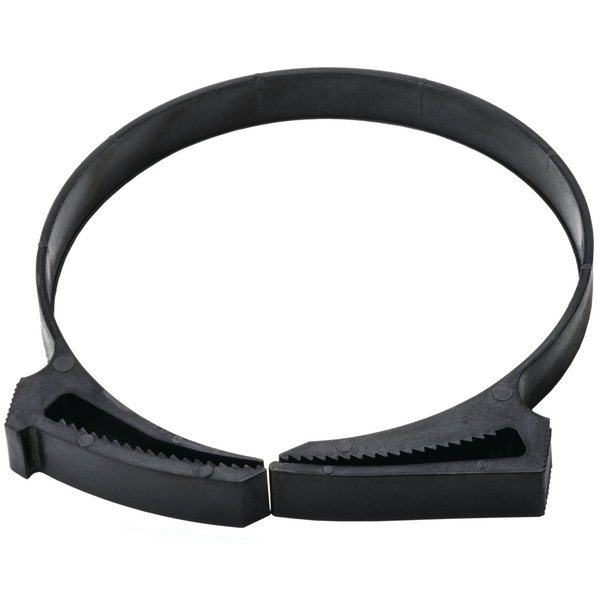

Plastic hose clamp, Ø73.6-82.7mm, black, 100pcs.
Art.-No. 190-00215 | SNP76-PA66GF13-BK Details

This product is not available anymore.
  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, glass-fibre reinforced (PA66GF13)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION SNP76-PA66GF13-BK
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Variant Closed
Bundle Diameter max (metric) 82.7mm
Bundle ∅ min. 73.6mm
Wall (WT) 1.717mm
Wall (WT) .067"
Width (W) max. 73.71mm
Width (W) max. 2.902"
Width (W) min. 44.09mm
Width (W) min. 1.736"
Width (W2) 0.39"
Width (W2) 9.91mm
∅ D max. 82.68mm
∅ D max. 3.255"
∅ D min. 2.898"
∅ D min. 73.61mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026421056
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121702
