BSPSW143B-PET-OG : BSPSW143B
Art.-No. 170-03082 | BSPSW143B-PET-OG |  Details

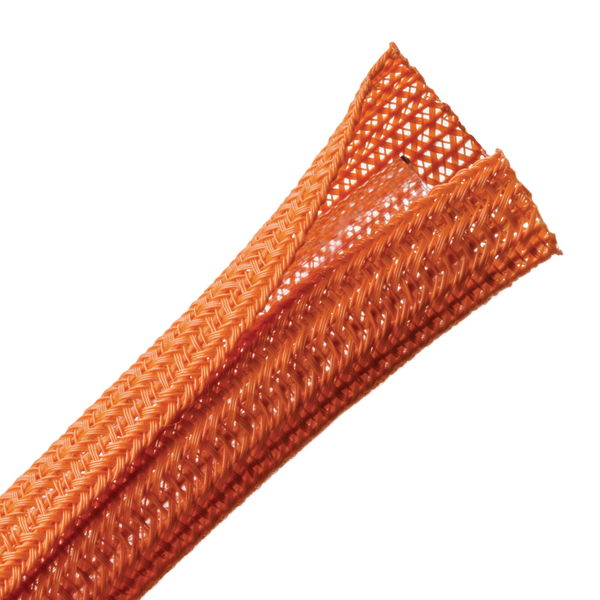

Expandable braided sleeving enlarges up to 150% of nominal diameter to accommodate irregular shapes.

    • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
    • Unique construction retains shape and rigidity throughout unrolling
    • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Orange (OG), High Voltage (HV)
    Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    Pack Content 60.96m
    Package Content packed in box
    PART DESCRIPTION BSPSW143B-PET-OG
    Bundle Diameter max (metric) 6.4mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 6.4mm
    Length (L) 61.0m
    Nominal ∅ 6.4mm
    Nominal ∅ 0.25"
    Wall (WT) 0.64mm
    Wall (WT) 0.025"
    ∅ D 0.25"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL-File Number E147924
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026440958
    Packaging 1 - Weight (kg) 0.54kg
    Reel Length 61.0m
    Reel Length 200.0ft
    UNSPSC Key 39131602
