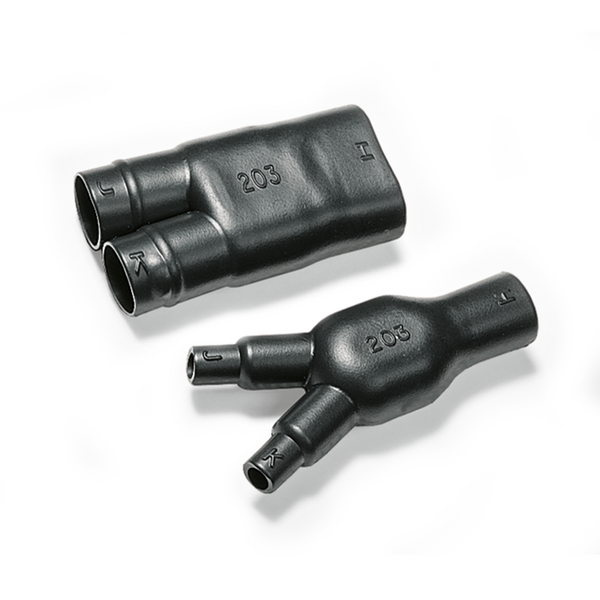

2-Way Outlet Shapes, VG style
???product.artNr??? 402-03001
| 203-1-B7-PO-X-BK
|
???product.copy???
- Mechanical tension relief in cable harnesses
???product.orderrequest.link???
???product.productgroup.title???:
| ???product.application??? | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 203-1-B7-PO-X-BK |
| Pack Content | 1pc. |
| Package Content packed in | bag |
| Product Family | Helashrink 200 Series |
| Product Group | 2-Way Outlet Shapes, VG style |
| Type | 203-1-B7 |
| UV-Stabilised | No |
| Variant | For 2-core cables |
|
|
|
| ⌀H max. b | 12mm |
| ⌀H min. a | 27mm |
| ⌀J max. b | 6mm |
| ⌀J min. a | 13mm |
| ⌀J/K max. b | 6mm |
| ⌀J/K min. a | 13mm |
| ⌀K max. b | 6mm |
| ⌀K min. a | 13mm |
| For Object Outside Diameter | 15-24 mm |
| HW ± 30 % | 2.5mm |
| JW nom. | 1.5mm |
| JW/KW ± 30% | 1.5mm |
| P ± 10 % | 80mm |
| P ±10%=overall length | 80mm |
| R nom. | 38mm |
| R ± 10 % | 43mm |
| S nom. | 43mm |
| Tube Shape | Multi-Outlet |
