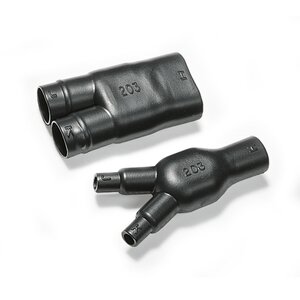

Helashrink 200 Series
Art.-No. 402-03035 | 203-1-G-PO-X-BK Details

  • Mechanical tension relief in cable harnesses

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Content 1pc.
Package Content packed in bag
PART DESCRIPTION 203-1-G-PO-X-BK
Product Family Helashrink 200 Series
Product Group 2-Way Outlet Shapes, VG style
Variant For 2-core cables
HW ± 30 % 2.5mm
JW nom. 1.5mm
JW/KW ± 30% 1.5mm
JW/KW ± 30% 1.5mm
P ± 10 % 80mm
P ±10%=overall length 80mm
R nom. 38mm
R ± 10 % 43mm
S nom. 43mm
∅H max. b 12mm
∅H min. a 27mm
∅J max. b 6mm
∅J min. a 13mm
∅J/K max. b 6mm
∅J/K min. a 13mm
∅K max. b 6mm
∅K min. a 13mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Nato number 5970-01-198-2859, 5970-12-199-9000, 5970-99-313-4316
Operating Temperature -75 °C to +150 °C
Specifications
UV-Stabilised No
GTIN-13 / EAN 5022660443626
UNSPSC Key 39121721
