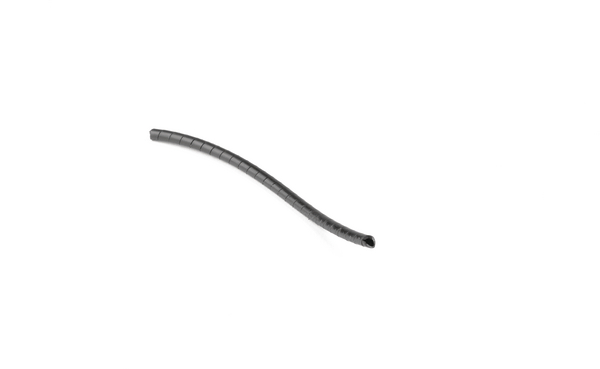

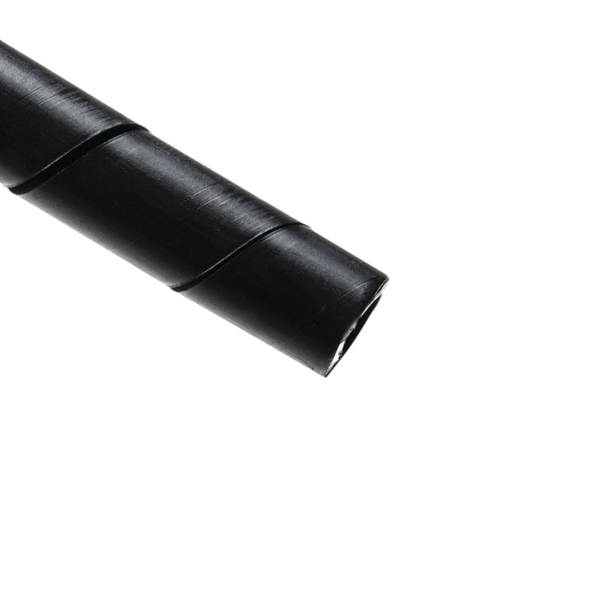

Spiral wrap, nom⌀3.18mm, ⌀7.92-76.2mm, -20 °C to +80 °C, black, 30.48m

Art.-No. 161-05016

| 2.5FRP-PE-FR-BK

|

Inner edges of spiralwrap are beveled to prevent damage to cables.

Spiralwrap protective sheathing is reusable and resistant to most chemicals.

Sheathing allows flexible routing and lead-out of cables.

Spiral binding

This product is not available anymore.

Please contact our sales team.

Used for organising and protecting wires, cables and tubes
Available in a wide range of diameters and colours
Can be fitted onto cables, wires or tubes in situ
Wires can branch out at any point and in any direction

Add to watchlist

Request quote

More products in this product group:

Base Data

Colour	Black (BK)
Material	Polyethylene, flame retardant (PE-FR)
PART DESCRIPTION	2.5FRP-PE-FR-BK
Pack Content	30.48m
Package Content packed in	pack
Product Group	Spiralwrap
Type	2.5FRP
UV-Stabilised	No
Variant	Spiral Binding

Product Dimensions


⌀ D	0.375"
Bundle ⌀ max.	76.2mm
Bundle ⌀ min.	7.92mm
Diameter (D)	9.53mm
Length (L)	30.48m
Nominal ⌀	0.13"
Nominal ⌀	3.18mm
Pitch (P)	0.438"
Pitch (P)	11.13mm
Wall (WT)	0.81mm
Wall (WT)	.052"

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Halogen-free	No
Operating Temperature	-20 °C to +80 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

GTIN-13 / EAN	4031026718767
Packaging 1 - Qty	1
Packaging 1 - Type	pack
Reel Length	100.0ft
Reel Length	30.48m

More Information

UNSPSC Key

39131604
