HWPP in polypropylene

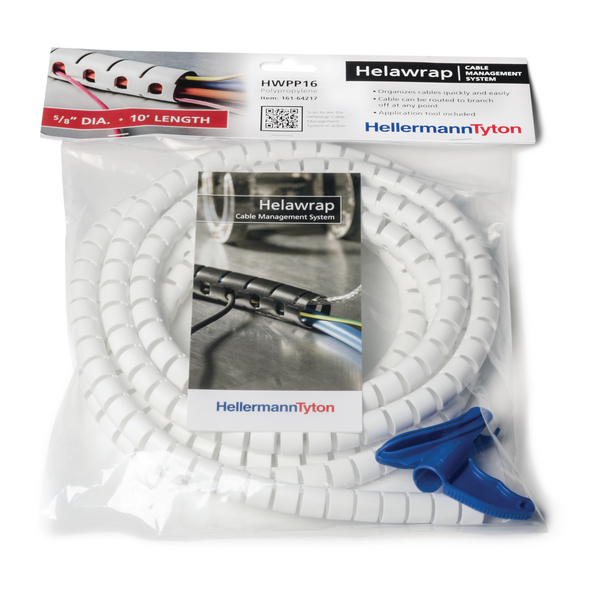

Art.-No. 161-64217 | HWPP16-PP-WH Details

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy HAT applicator tool included
Show more
Package size

Request your individual offer now

Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
Application Tool HAT16
Colour White (WH)
Material Polypropylene (PP)
Pack Content 3.05m
Package Content packed in bag
PART DESCRIPTION HWPP16-PP-WH
Product Family HWPP in polypropylene
Product Group Helawrap cable cover
Variant Spiral Binding
Bundle Diameter max (metric) 16.0mm
Bundle ∅ min. 12.95mm
Diameter (D) 12.70mm
Length (L) 3.05m
Nominal ∅ 16.0mm
Nominal ∅ 0.63"
Pitch (P) 12.95mm
Pitch (P) 0.51"
Wall (WT) 0.75mm
Wall (WT) 0.03"
∅ D 0.5"
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Intermittent Operating Temperature +140°C
Melting Point +284 °F (+140 °C)
Operating Temperature -60 °C to +110 °C, intermittent +140 °C
Specifications
Specifications ECE R-118-03 Abschnitt 6 / Annex 6
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026486161
Packaging 1 - Weight (kg) 0.12kg
Reel Length 3.05m
Reel Length 10.0ft
UNSPSC Key 39131604
