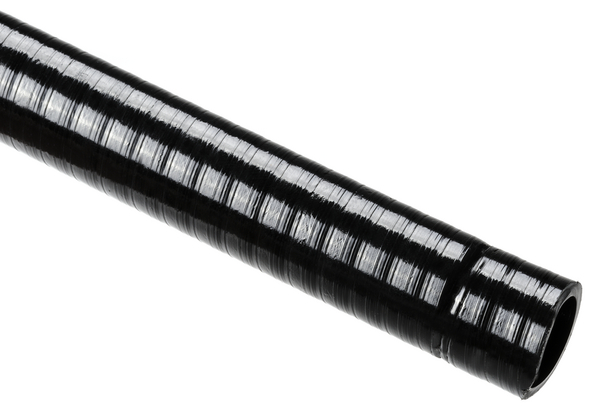

LPC0750-PVC-BK

Art.-No. 166-90249

| LPC0750-PVC-BK

|

Add to watchlist

Request quote

Downloads

Base Data

Colour	Black (BK)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	LPC0750-PVC-BK
Pack Content	30.5m
Package Content packed in	reel
Type	LPC0750

Product Dimensions

Bending Radius min. (BR)	3.54"
Bending Radius min. (R)	90mm
Inner Diameter D (Imperial)	0.83"
Inside ⌀ (ID)	21mm
Length (L)	30.5m
Nominal ⌀	0.75"
Nominal ⌀	25mm
Outside ⌀ (OD)	26.4mm
Outside ⌀ (OD)	1.04"

Specifications

CSA Certified	No
Flammability	EN IEC 61386-1
Halogen-free	No
Operating Temperature	-5 °C to +70 °C
ROHS compliant	Yes
Self extinguishing	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
