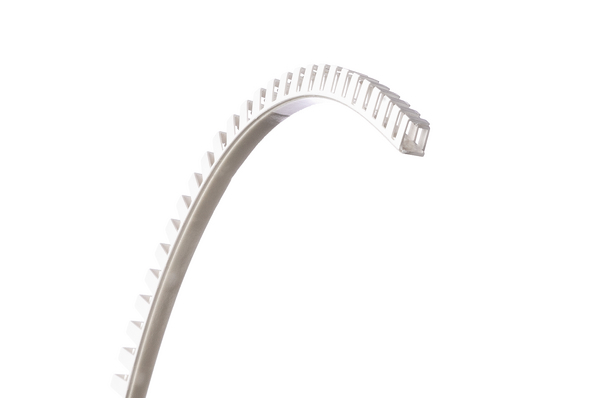

Flexible cable support 11x13.5 mm, 500 mm, PP, white, for screwing or gluing
Art.-No. 164-11108 | HelaDuct Flex10SK-PP-WH Details

  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer
Package size

Request your individual offer now

Application HelaDuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.
Colour White (WH)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting and Adhesive
Material Polypropylene (PP)
No. of Wires 4 x 2.50 mm²
No. of Wires 6 x 1.50 mm²
No. of Wires 9 x 0.75 mm²
PART DESCRIPTION HelaDuct Flex10SK-PP-WH
Pack Content 100pcs.
Package Content packed in box
Product Family HelaDuct Flex
Product Group Flexible cable support
Type HelaDuct Flex10SK
Type of side wall Slotted
Diameter (D) 10mm
Height (H) 13.5mm
Inner Diameter D (Imperial) 0.39"
Inner Diameter D oval (metric) 9 x 11mm
Inside Ø (ID) 10.0mm
Length (L) 500mm
Nominal ∅ 0.39"
Nominal ∅ 10mm
Width (W) 11.0mm
Width (W2) 0.19"
Width (W2) 5.0mm
Width (W3) 0.31"
Width (W3) 8.0mm
∅ D 0.39"
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +80 °C
CE Certification Yes
CSA Certified Yes
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -20 °C to +70 °C, (+80 °C, 200 h)
ROHS compliant Yes
Self extinguishing Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
GTIN-13 / EAN 4031026329536
Packaging 3 - Height (m) 0.29m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 100
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0303
Packaging 3 - Weight (kg) 2.56kg
Packaging 3 - Width (m) 0.205m
Packaging 4 - Height (m) 1.015m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2100
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.974
Packaging 4 - Weight (kg) 74.754kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39131712
