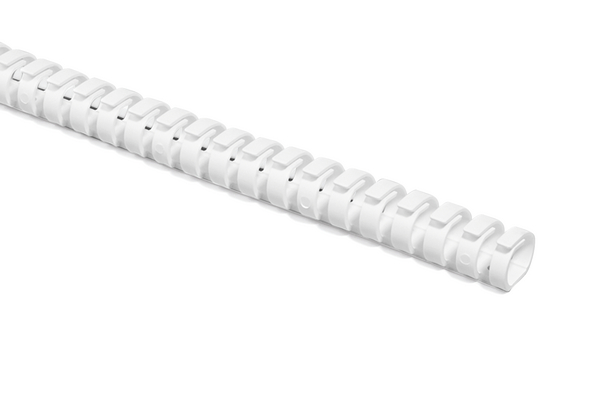

Flexible cable support : HelaDuct Flex20

Flexible cable support 24x24 mm, 500 mm, PP, white, Article number: 164-21008


  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Certifications & Approvals


HelaDuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.

HelaDuct Flex is suitable for following markets and industries

  • Electrical Installation Electrical Installation
Colour White (WH)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting
No. of Wires 22 x 1.50 mm²
No. of Wires 32 x 0.75 mm²
No. of Wires 14 x 2.50 mm²
Pack Content 70pcs.
Package Quantity per box
Product Family HelaDuct Flex
Product Group Flexible cable support
Type of side wall Slotted
Diameter (D) 20mm
Height (H) 24mm
Inside Ø (ID) 20mm
Length (L) 500mm
Max. load on a length of 500 mm at 70 °C (g) 300
Nominal ∅ 20mm
Width (W) 24mm
Width (W2) 5mm
Width (W3) 8mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Material PP
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Self extinguishing (Yes/No) ETIM Yes
EAN / GTIN 4031026329505
Packaging 3 - Height (m) 0.29m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 70
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0303
Packaging 3 - Weight (kg) 3.58kg
Packaging 3 - Width (m) 0.205m
Packaging 4 - Height (m) 1.015m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1470
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.974
Packaging 4 - Weight (kg) 96.18kg
Packaging 4 - Width (m) 0.8m
Weight 0.04kg
