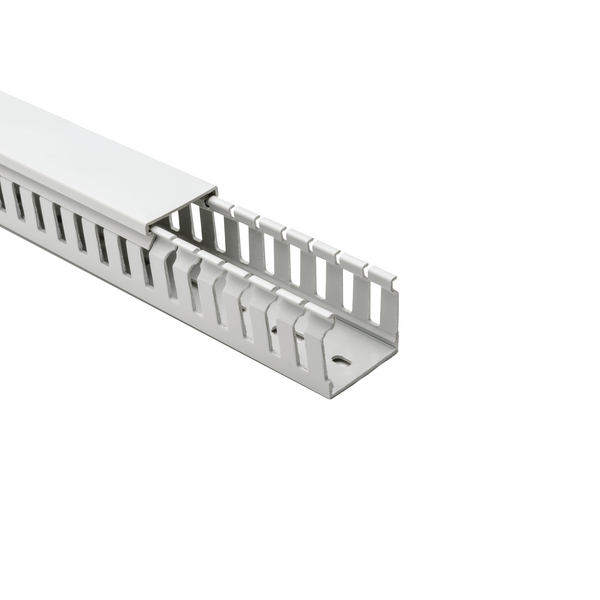

Wiring duct, wide fingers, halogen-free, 37.5x50.0mm, L=2m, grey, 32m
Art.-No. 183-13750
| HTWD-HF-37.5X50-PC/ABS-GY
|
Copied
- Excellent fire-safety characteristics
Narrow slots suitable for small-diameter wires
Smooth, burr-free edges protect installers from injury and wires from damage
Fingers can be removed with no sharp edges at pre-notched snap-off points
Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
Duct covers hold securely even in a vertical position and under vibration
Cover is flush with side of duct, allowing for tight, contiguous placement of duct
Base perforation according to DIN EN 50085
Request your individual offer now
Request quote
More products in this product group:
| Application |
HellermannTyton HTWD-HF halogen-free ducts are used wherever there are high demands on personal or material safety, such as public transport, tunnels, lifts and data processing centres. Note: Halogen-free PC+ABS is not resistant to all oils and greases. |
| Colour | Grey RAL 7035 (RAL7035) |
| Current leak stable Yes/No | Yes |
| Fixation Method | Screw Mounting |
| Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS) |
| PART DESCRIPTION | HTWD-HF-37.5X50-PC/ABS-GY |
| Pack Content | 32m |
| Package Content packed in | pack |
| Product Family | HelaDuct HTWD-HF (DIN sizes) |
| Product Group | HTWD Halogen Free Wiring Duct |
| Type | HTWD-HF-37.5X50 |
| Type of side wall | Slotted |
| UV-Stabilised | No |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| EN 45545-2 Results | R22 HL3, R23 HL3 |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -25 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | ANSI/UL 62275, EN 45545-2 |
| UL File link | Link |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | E357929 |
|
|
|
| GTIN-13 / EAN | 4031026297569 |
| Packaging 1 - Type | box |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 2.03m |
| Packaging 3 - Qty | 32 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0658m³ |
| Packaging 3 - Weight (kg) | 21.556kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 12.25m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 768 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 11.76m³ |
| Packaging 4 - Weight (kg) | 557.344kg |
| Packaging 4 - Width (m) | 0.8m |
