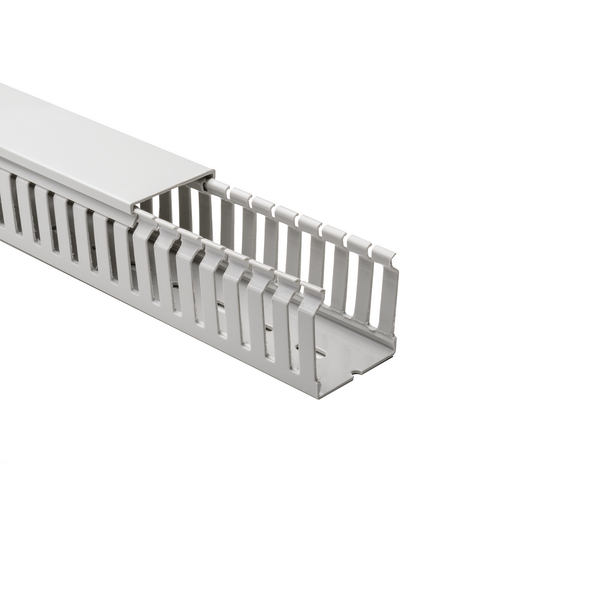

Wiring duct, wide fingers, halogen-free, 50x50.0mm, L=2m, grey, 42m
Art.-No. 183-15050
| HTWD-HF-50X50-PC/ABS-GY
|
Copied
- Excellent fire-safety characteristics
- Narrow slots suitable for small-diameter wires
- Smooth, burr-free edges protect installers from injury and wires from damage
- Fingers can be removed with no sharp edges at pre-notched snap-off points
- Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
- Duct covers hold securely even in a vertical position and under vibration
- Cover is flush with side of duct, allowing for tight, contiguous placement of duct
- Base perforation according to DIN EN 50085
Show more
Show less
Request quote
More products in this product group:
| Application |
HellermannTyton HTWD-HF halogen-free ducts are used wherever there are high demands on personal or material safety, such as public transport, tunnels, lifts and data processing centres. Note: Halogen-free PC+ABS is not resistant to all oils and greases. |
| Colour | Grey (GY) |
| Current leak stable Yes/No | Yes |
| Fixation Method | Screw Mounting |
| Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS) |
| PART DESCRIPTION | HTWD-HF-50X50-PC/ABS-GY |
| Pack Content | 42m |
| Package Content packed in | pack |
| Product Family | HelaDuct HTWD-HF (DIN sizes) |
| Product Group | HTWD Halogen Free Wiring Duct |
| Type | HTWD-HF-50X50 |
| Type of side wall | Slotted |
| UV-Stabilised | No |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| EN 45545-2 Results | R22 HL3, R23 HL3 |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -25 °C to +90 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 62275, EN 45545-2 |
| UL File link | Link |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UL-File Number | E357929 |
|
|
|
| GTIN-13 / EAN | 4031026297583 |
| Packaging 1 - Type | pack |
| Packaging 3 - Height (m) | 0.1m |
| Packaging 3 - Length (m) | 2.03m |
| Packaging 3 - Qty | 42 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 16.586kg |
| Packaging 3 - Width (m) | 0.2m |
| Packaging 4 - Height (m) | 1.245m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1848 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.195m³ |
| Packaging 4 - Weight (kg) | 769.784kg |
| Packaging 4 - Width (m) | 0.8m |
