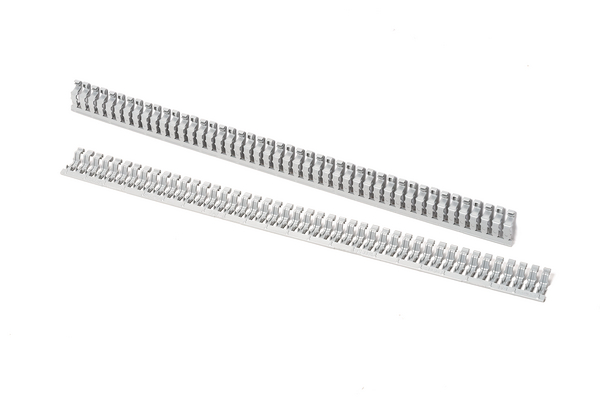

MDHDW1.5-PVC-GY : MDHDW1.5
Art.-No. 181-01001 | MDHDW1.5-PVC-GY |  Details

SmartDuct sidewalls are produced with an injection molding grade PVC material that ensures a consistently smooth surface and eliminates any rough edges.

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Grey (GY)
    Material Polyvinylchloride (PVC)
    Pack Content 20pcs.
    Package Content packed in carton
    PART DESCRIPTION MDHDW1.5-PVC-GY
    Height (H) 33.8mm
    Height (H2) 27.5mm
    Height (H3) 39.4mm
    Length (L) 457.0mm
    Width (W3) 1.93mm
    Width (W3) 0.076"
    Width (W4) 0.4"
    Width (W4) 10.2mm
    Width (W5) 0.324"
    Width (W5) 8.23mm
    CE Certification No
    Halogen-free No
    Operating Temperature +50 °C
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    GTIN-13 / EAN 4031026627694
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
