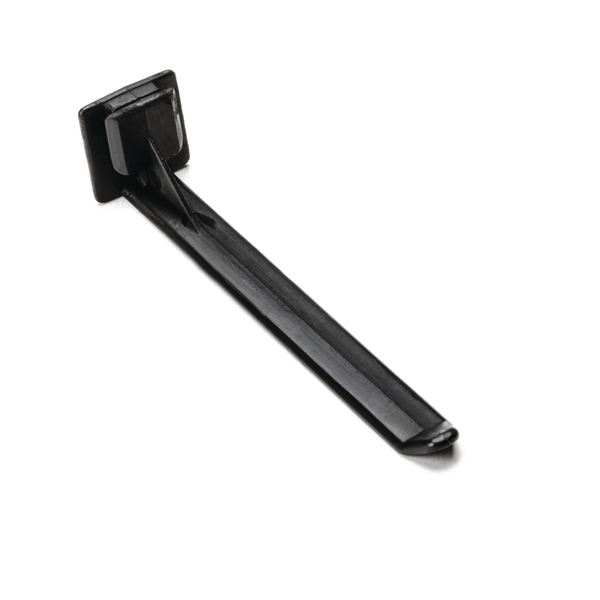

Accessory, HelaDuct, black, 100pcs. (SLWR40)
Art.-No. 181-40041 | SLWR40-PA66-BK |

Copied
Slotted style wire retainer.
Width 40-60
Width 80-120
Width 150
HTWD-BWR

    • Quickly and easily fastend on raised mounting points with a 1/4 turn of a screwdriver
    • Wires easily inserted and firmly held in place
    • Anchor of retainer remains inside raised mounting point and does not protrude below surface of duct base
    • Reduces strain on duct fingers especially at corners and eliminates bulging against sidewall
    • Available for all duct sizes of width and height larger than 40
    • Fits snuggly in duct for minimal loss of installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application HelaDuct Base Wire Retainers HTWD-BWR are anchored securely on the raised mounting points of HTWD-PN and HTWD-PW ducts to allow insertion of wires. Wires are held in place during wiring, for instance in a vertical position or during ceiling installation.
    Adjustable to duct width (Yes/No) No
    Colour Black (BK)
    Current leak stable Yes/No Yes
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION SLWR40-PA66-BK
    Pack Content 100pcs.
    Package Content packed in pack
    Product Family HelaDuct HTWD-BWR Base Wire Retainers
    Product Group For mounting prior to wiring
    Type SLWR40
    UV-Stabilised No
    Height (H) 18.8mm
    Length (L) 1.83m
    Width (W) 101.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -5 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026718828
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.439737499999999m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0156m³
    Packaging 3 - Width (m) 0.260349999999999m
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
