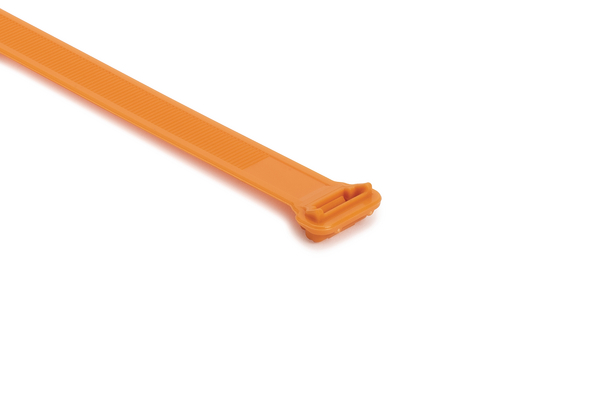

Cable tie inside serrated, 307x12.7mm, ⌀9.5-82.5mm, orange, 300pcs.
Art.-Nr. 111-12306
| WSI-PA66HIRHS-OG
|
Copied
- Wide strap is designed to minimize pinching of soft hoses and convoluted tubing
- Low profile head
- Clamping rails on the bottom of head to increase grip on round bundles
- Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
- Flexible strap
- Bent tip for quick insertion into mounts
Show more
Show less
Request quote
More products in this product group:
| Application | The very flexible wide-strap cable tie is used in heavy-duty applications where limited room is offered for the application. It is therefore a valued product in all areas of mass transit, as well as the construction and automotive industries. |
| Colour | Orange (OG), High Voltage (HV) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | WSI-PA66HIRHS-OG |
| Package Content | 300pcs. |
| Package Content packed in | pack |
| Product Family | WS-Series for heavy duty applications |
| Product Group | Cable ties for hose and convoluted tubing |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | WSI |
| UV-Stabilised | No |
| Variant | Inside Serrated |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
