03/10/2025

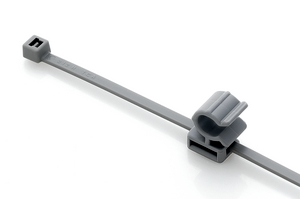

Fixing tie for cable bundles/with pipe/tube holder, ⌀4.0-30.0mm, grey, 500pcs.
Art.-Nr. 156-01608 | T30ROC2A-PA46-GY

Copied
  • For post-installation of additional cables for preassembled cable looms
  • Variety of twist angles and even different loop directions provide flexibility for cable routing
  • For OC1 and 2A additional cable tie dimensions are available
  • CBTO-series for cable ties up to 5 mm

Request your individual offer now

Colour Grey (GY)
Fixation Method Omega Clip
Identification Plate Position none
Key product features for multiple routing, removable
Material Polyamide 4.6 (PA46)
Min.Tensile Strength 135N
PART DESCRIPTION T30ROC2A-PA46-GY
Package Content 500pcs.
Package Content packed in bag
Product Family T30ROC2A for Pipediameter 6,5 - 7,5 mm
Product Group 2-piece fixing ties with pipe clip
Type T30ROC2A
Attach to ⌀ 6.5 - 7.5
Bundle ⌀ 4.0-30.0mm
Bundle ⌀ max. 30.0mm
Bundle ⌀ min. 4.0mm
Length (L) 150mm
Width (W) 3.6mm
Flammability UL 94 V2
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
Country of Origin CN
GTIN-13 / EAN 4031026559490
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 31162906
