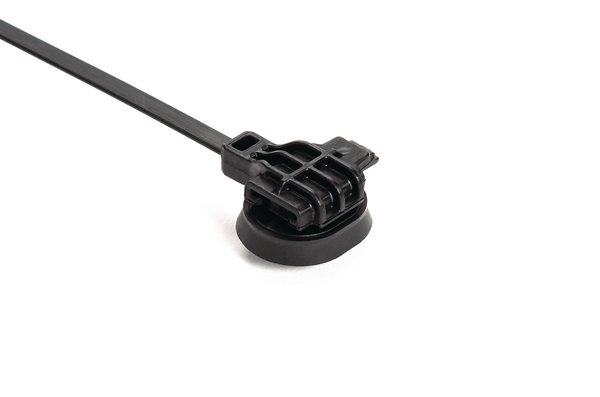

Fixing tie for hole (oval), ⌀2.0-50.0mm, black, 2000pcs.
Art.-Nr. 156-01804 | T50ROS15ACCSAHOVAL-PA66HIRHSUV/TPE-BK |

Copied
Low-profile design saves 5 mm of height when installed.
The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50ROS15ACCSAHOVAL-PA66HIRHSUV/TPE-BK
    Package Content 2000pcs.
    Package Content packed in bag
    Product Family for oval holes, sealed
    Product Group 2-Piece Fixing Ties with Arrowhead, with Disc
    Tie Closure plastic pawl
    Type T50ROS15ACCSAHOVAL
    UV-Stabilised Yes
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Disc ⌀ 27.28mm
    Fixing Hole Shape Oval
    Height (H) 17.9mm
    Hole Depth 0.6mm
    Hole Depth 1.1mm
    Length (L) 209.0mm
    Offset Length 15.0mm
    Panel Thickness 0.6 - 1.1mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    for Panel Thickness min - max 0 - 0 "
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026590974
    Packaging 1 - Weight (kg) 0.004kg
    Packaging 3 - Height (m) 0.352424999999999m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
